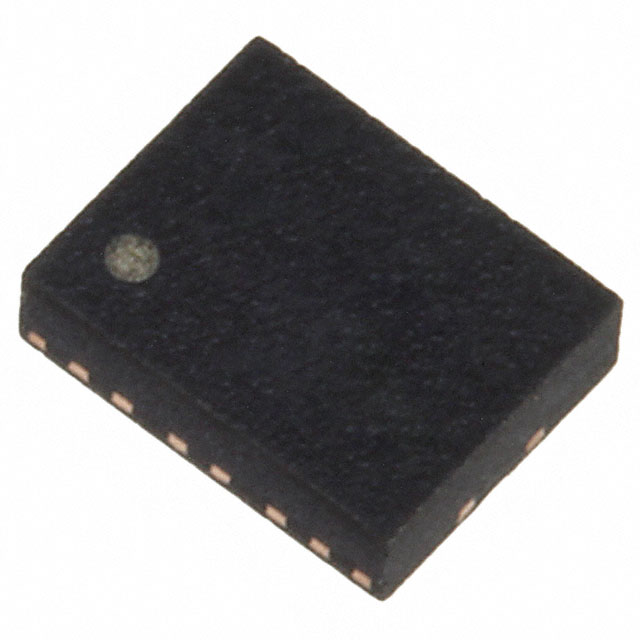

DSC8101CL5-PROGRAMMABLE
MEMS OSC PROG XO CMOS 2.25-3.6VManufacturer: Microchip Technology
Categories: Programmable Oscillators
Quality Control: Learn More
Microchip Technology DSC8101CL5-PROGRAMMABLE is a programmable MEMS XO oscillator. This device operates within a frequency range of 10 MHz to 170 MHz, offering flexibility for precise timing applications. It features a CMOS output and is specified for a supply voltage range of 2.25V to 3.6V. The DSC8101 series oscillator provides a total frequency stability of ±10ppm. With a standby function, it is designed for efficient power management. The component is housed in a compact 6-SMD, No Lead package, measuring 3.20mm x 2.50mm with a maximum seated height of 0.90mm. Operating across an industrial temperature range of -40°C to 105°C, it is suitable for deployment in demanding environments. Typical applications include telecommunications, industrial automation, and consumer electronics.
Additional Information
Series: DSC8101RoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.126"" L x 0.098"" W (3.20mm x 2.50mm) |
| Mounting Type | Surface Mount |
| Output | CMOS |
| Function | Standby |
| Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) |
| Type | XO (Standard) |
| Operating Temperature | -40°C ~ 105°C |
| Frequency Stability | - |
| Voltage - Supply | 2.25V ~ 3.6V |
| Ratings | - |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 35mA |
| Height - Seated (Max) | 0.035"" (0.90mm) |
| Frequency Stability (Total) | ±10ppm |
| Available Frequency Range | 10 MHz ~ 170 MHz |
| Base Resonator | MEMS |
