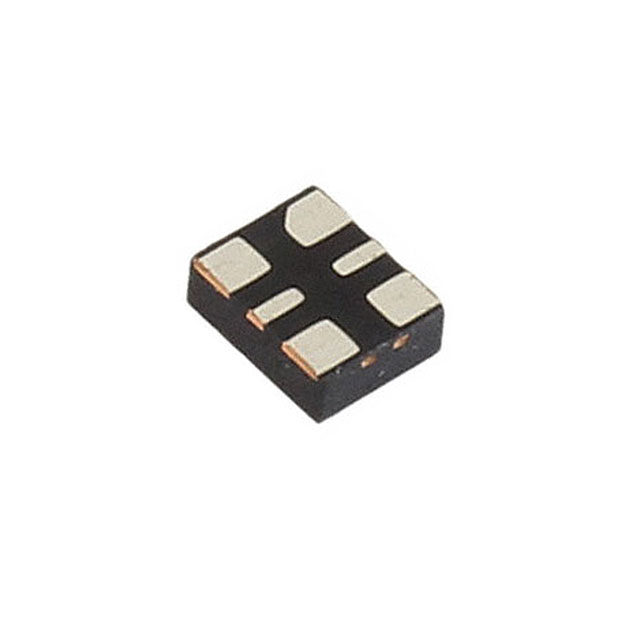

DSC8101CI1-PROGRAMMABLE
MEMS OSC PROG XO CMOS 2.25-3.6VManufacturer: Microchip Technology
Categories: Programmable Oscillators
Quality Control: Learn More
Microchip Technology's DSC8101CI1-PROGRAMMABLE is a programmable XO (Standard) MEMS oscillator. This device offers a configurable output frequency within the 10 MHz to 170 MHz range, with a total frequency stability of ±50ppm. It operates with a supply voltage from 2.25V to 3.6V and features a CMOS output. The oscillator includes a standby function. Its compact 6-SMD, No Lead package, measuring 3.20mm x 2.50mm, is designed for surface mounting. The DSC8101 series is suitable for applications in communications, industrial control, and consumer electronics, demanding precise timing and low power consumption. The maximum supply current is 35mA.
Additional Information
Series: DSC8101RoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.126"" L x 0.098"" W (3.20mm x 2.50mm) |
| Mounting Type | Surface Mount |
| Output | CMOS |
| Function | Standby |
| Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) |
| Type | XO (Standard) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | - |
| Voltage - Supply | 2.25V ~ 3.6V |
| Ratings | - |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 35mA |
| Height - Seated (Max) | 0.035"" (0.90mm) |
| Frequency Stability (Total) | ±50ppm |
| Available Frequency Range | 10 MHz ~ 170 MHz |
| Base Resonator | MEMS |
Request a Quote
Clients Also Buy

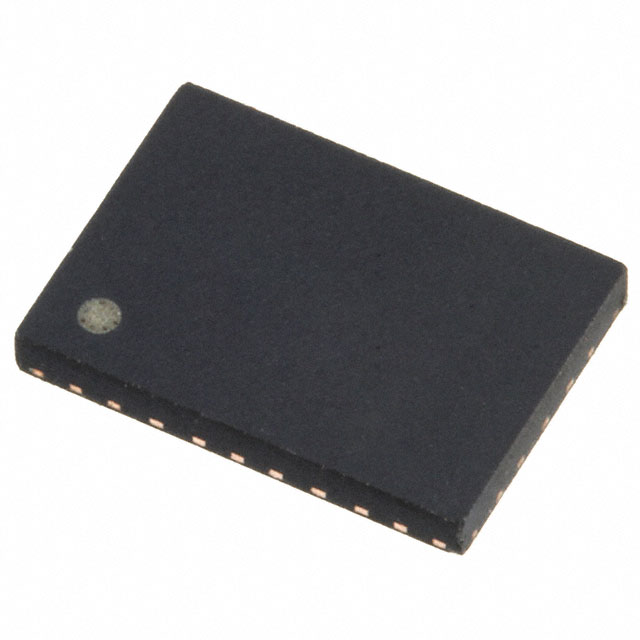

DSC8101AI2-PROGRAMMABLE
