DSC8002AI2-PROGRAMMABLE
MEMS OSC PROG XO CMOS 1.8V-3.3VManufacturer: Microchip Technology
Categories: Programmable Oscillators
Quality Control: Learn More
The Microchip Technology DSC8002AI2-PROGRAMMABLE is a highly flexible, programmable MEMS XO oscillator operating from 1.8V to 3.3V. This surface-mount component, housed in a 4-SMD, No Lead package, offers selectable output frequencies between 1 MHz and 150 MHz with a total frequency stability of ±25ppm. It features a standby function and a maximum supply current of 10mA. The device is designed for applications requiring precise timing and low jitter, commonly found in industrial control, telecommunications infrastructure, and consumer electronics. Its compact 7.00mm x 5.00mm footprint and 0.90mm seated height make it suitable for space-constrained designs. Operating temperature range is -40°C to 85°C.
Additional Information
Series: DSC8002RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.276"" L x 0.197"" W (7.00mm x 5.00mm) |
| Mounting Type | Surface Mount |
| Output | CMOS |
| Function | Standby |
| Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) |
| Type | XO (Standard) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | - |
| Voltage - Supply | 1.8V ~ 3.3V |
| Ratings | - |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 10mA |
| Height - Seated (Max) | 0.035"" (0.90mm) |
| Frequency Stability (Total) | ±25ppm |
| Available Frequency Range | 1 MHz ~ 150 MHz |
| Base Resonator | MEMS |
Request a Quote
Clients Also Buy

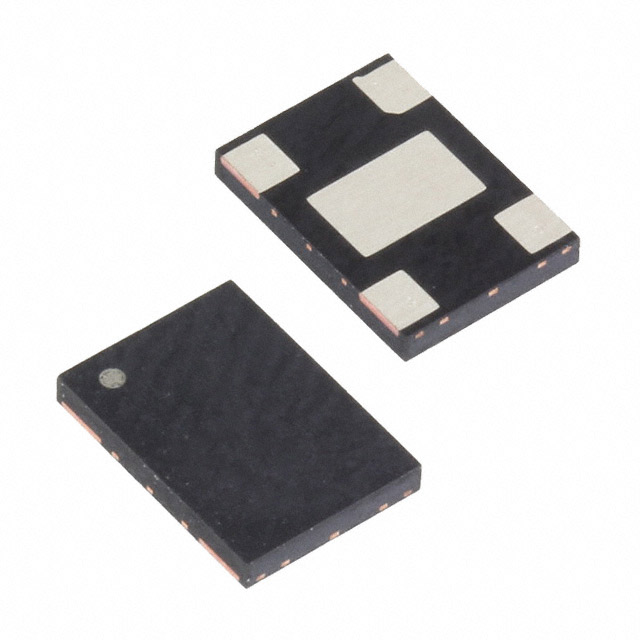

DSC8002AI1
