PD-9506GC/AC-US
6-PORT BT 60W NMS US CORDManufacturer: Microchip Technology
Categories: Power over Ethernet (PoE)
Quality Control: Learn More

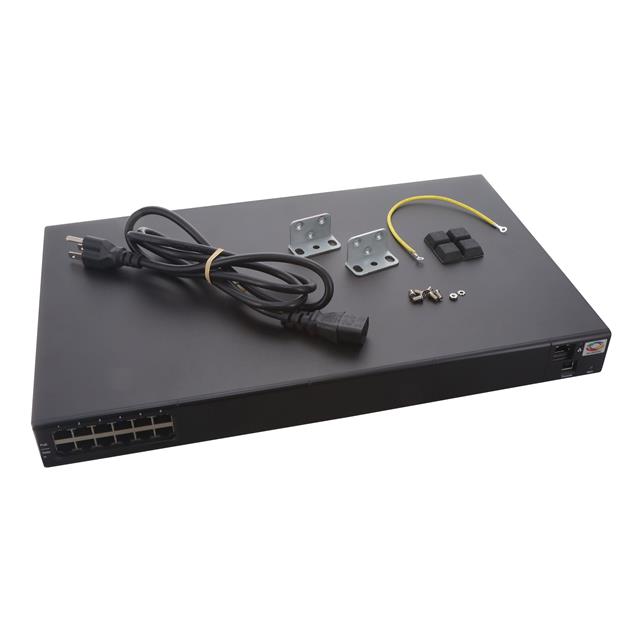

Microchip Technology PowerDsine® PD-9506GC-AC-US is a 6-port, 60W per port IEEE802.3bt compliant midspan injector. This rack-mount unit operates with a 100-240 VAC input, delivering a 55V output at 1.1A per port to support high-power PoE devices. The PD-9506GC-AC-US facilitates 10/100/1000 Mbps data rates, ensuring non-disruptive network connectivity for powered devices. Its robust design is suitable for applications in telecommunications, wireless networking, and surveillance systems. The unit meets CE approval and is supplied in bulk packaging.
Additional Information
Series: PowerDsine®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Size / Dimension | 17.30"" L x 10.80"" W x 1.75"" H (439.4mm x 274.3mm x 44.5mm) |
| Voltage - Output | 55V |
| Mounting Type | Rack Mount |
| Voltage - Input | 100 ~ 240 VAC |
| Type | Midspan Injector |
| Operating Temperature | 0°C ~ 40°C |
| Data Rate | 10/100/1000 Mbps |
| Approval Agency | CE |
| Efficiency | - |
| Power (Watts) - Per Port | 60W |
| Compliance | IEEE802.3af, IEEE802.3at, IEEE802.3bt |
| Current - Output | 1.1 A |
| Number of Ports | 6 |
Request a Quote
