PD-9004G/AC-EU
4-PORT AT 30W 1G AC EU CORDManufacturer: Microchip Technology
Categories: Power over Ethernet (PoE)
Quality Control: Learn More

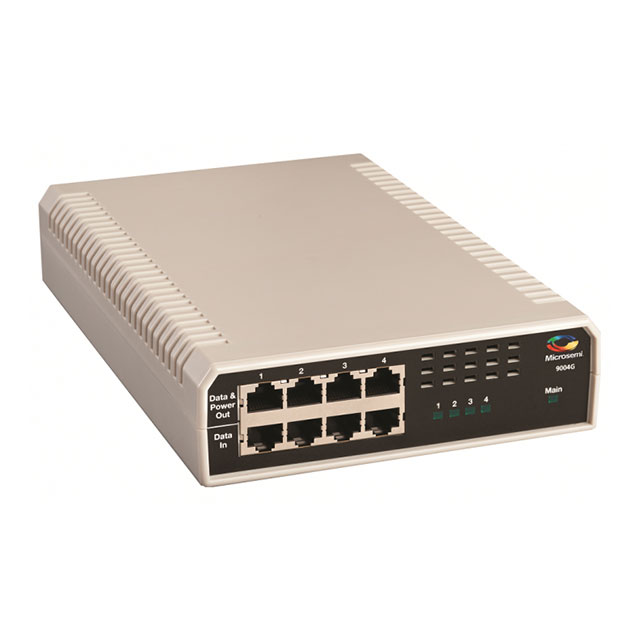

Microchip Technology PD-9004G-AC-EU, a 4-port Power over Ethernet (PoE) midspan injector from the PowerDsine® series, delivers 30W per port with a 55V output. Supporting 10/100/1000 Mbps data rates, this AC-powered unit is designed for high-density networking applications. Its input voltage range is 90-264 VAC, and it is compliant with IEEE802.3af standards. The PD-9004G-AC-EU features a desktop mounting type and operates within a temperature range of 0°C to 40°C. Its dimensions are 8.82" L x 5.82" W x 1.69" H (224.0mm x 147.8mm x 42.9mm). This component is suitable for deployment in telecommunications, wireless access points, and security surveillance systems.
Additional Information
Series: PowerDsine®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Size / Dimension | 8.82"" L x 5.82"" W x 1.69"" H (224.0mm x 147.8mm x 42.9mm) |
| Voltage - Output | 55V |
| Mounting Type | Desktop |
| Voltage - Input | 90 ~ 264 VAC |
| Type | Midspan Injector |
| Operating Temperature | 0°C ~ 40°C |
| Data Rate | 10/100/1000 Mbps |
| Approval Agency | CE |
| Efficiency | - |
| Power (Watts) - Per Port | 30W |
| Compliance | IEEE802.3af |
| Current - Output | 545 mA |
| Number of Ports | 4 |
