PD69200R-017217
MCUManufacturer: Microchip Technology
Categories: Power Over Ethernet (PoE) Controllers
Quality Control: Learn More
Microchip Technology's PD69200R-017217 is a 48-channel Power over Ethernet (PoE) controller, conforming to IEEE 802.3af, 802.3at (PoE+), and 802.3bt standards. This device supports up to 90 W per port for Type 3 and Type 4 devices. It features auxiliary sensing and is housed in a 32-QFN (5x5) package for surface mounting. The PD69200R-017217 operates within a temperature range of -40°C to 85°C and requires a supply voltage between 3V and 3.63V. This controller is suitable for demanding applications in networking infrastructure, industrial automation, and security systems where high-density PoE power delivery is essential.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 32-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Controller (PSE) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 3V ~ 3.63V |
| Current - Supply | - |
| Internal Switch(s) | No |
| Standards | 802.3at (PoE+), 802.3af (PoE), 802.3bt |
| Supplier Device Package | 32-QFN (5x5) |
| Auxiliary Sense | Yes |
| Number of Channels | 48 |
| Power - Max | 90 W |
Request a Quote
Clients Also Buy
PD69200R-021126
MCU

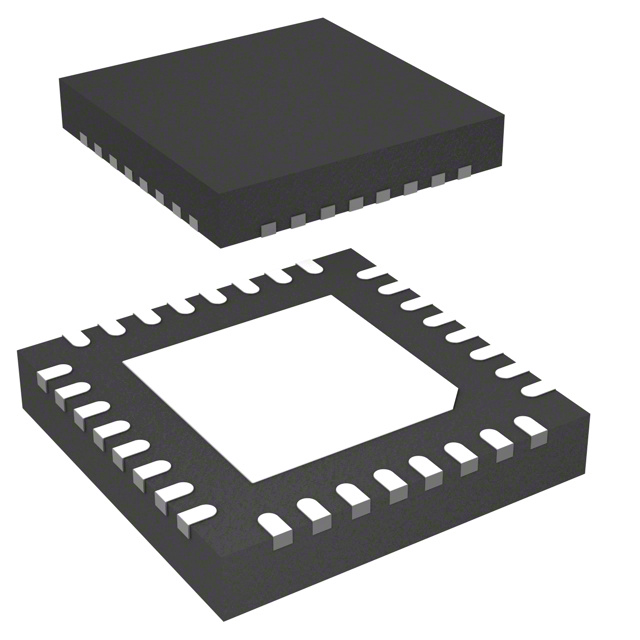

PD81000-028101
