PD69200C-021019-TR
MCUManufacturer: Microchip Technology
Categories: Power Over Ethernet (PoE) Controllers
Quality Control: Learn More
Microchip Technology PD69200C-021019-TR is a 48-channel Power Sourcing Equipment (PSE) controller designed for Power over Ethernet applications. This device supports IEEE 802.3af, 802.3at (PoE+), and 802.3bt standards, enabling power delivery of up to 90W per port. The PD69200C-021019-TR features auxiliary sensing and operates within a 3V to 3.63V supply voltage range. It is housed in a 32-QFN (5x5) package with an exposed pad, suitable for surface mount applications. This component is commonly utilized in networking infrastructure, industrial automation, and security systems requiring robust PoE solutions. The device is supplied on tape and reel (TR) for automated assembly.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

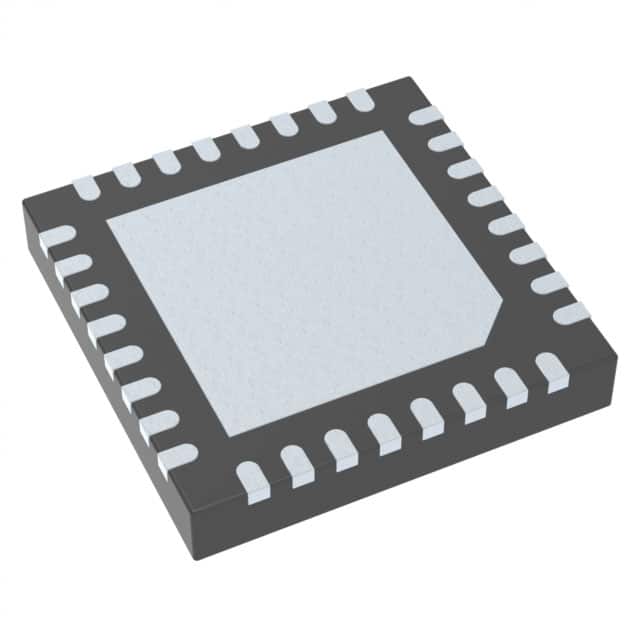

| Package / Case | 32-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Controller (PSE) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 3V ~ 3.63V |
| Current - Supply | - |
| Internal Switch(s) | No |
| Standards | 802.3at (PoE+), 802.3af (PoE), 802.3bt |
| Supplier Device Package | 32-QFN (5x5) |
| Auxiliary Sense | Yes |
| Number of Channels | 48 |
| Power - Max | 90 W |
