PD69200C-015101
MCUManufacturer: Microchip Technology
Categories: Power Over Ethernet (PoE) Controllers
Quality Control: Learn More
Microchip Technology PD69200C-015101 is a 48-channel Power Sourcing Equipment (PSE) controller supporting IEEE 802.3af, 802.3at (PoE+), and 802.3bt standards. This surface mount component, housed in a 32-QFN (5x5) package, offers auxiliary sensing capabilities and is designed for operation within a -40°C to 85°C temperature range. The device facilitates power delivery up to 90W per port, making it suitable for high-density Power over Ethernet applications. Its architecture is optimized for power management and control in networking infrastructure, industrial automation, and telecommunications equipment. The PD69200C-015101 operates from a 3V to 3.63V supply voltage.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 32-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Controller (PSE) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 3V ~ 3.63V |
| Current - Supply | - |
| Internal Switch(s) | No |
| Standards | 802.3at (PoE+), 802.3af (PoE), 802.3bt |
| Supplier Device Package | 32-QFN (5x5) |
| Auxiliary Sense | Yes |
| Number of Channels | 48 |
| Power - Max | 90 W |
Request a Quote
Clients Also Buy
PD69104ILQ-TR
POE PSE CONTROLLER

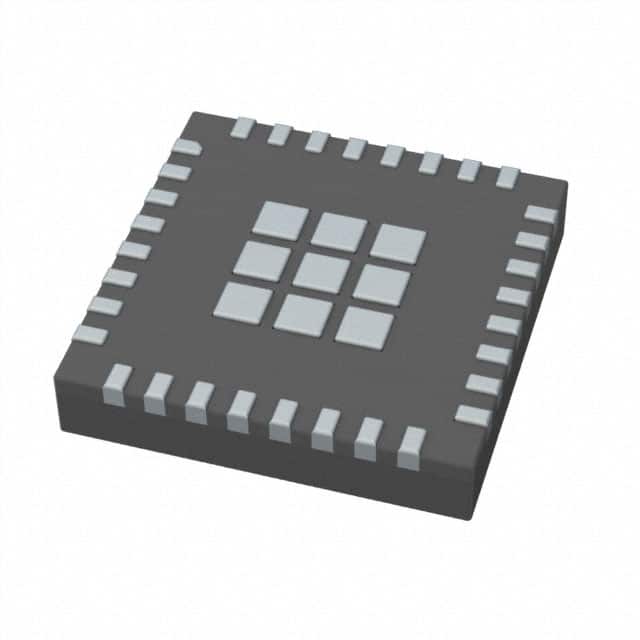

PD69220R-035400
