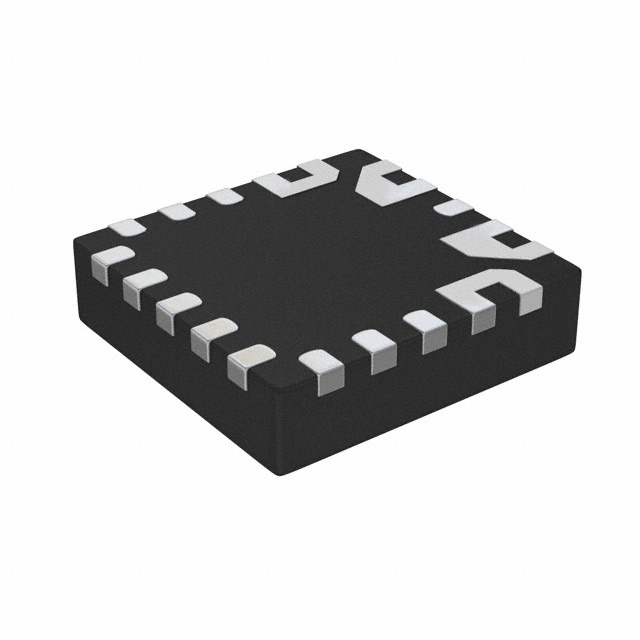

UCS2114T-1-V/LX
IC PWR SWITCH 1:1 20VQFNManufacturer: Microchip Technology
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 3A 20-VQFN (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-VFQFN |
| Output Type | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Interface | I2C, SMBus |
| Switch Type | USB Switch |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 18mOhm |
| Input Type | - |
| Voltage - Load | 2.9V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | 3A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 20-VQFN (3x3) |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO |
Request a Quote
