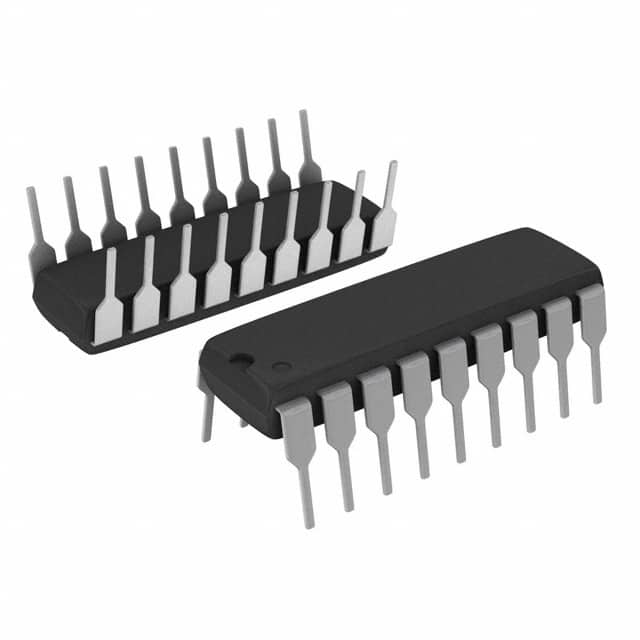

MIC5842YN
IC PWR DRIVER BIPOLAR 1:8 18DIPManufacturer: Microchip Technology
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:8 Bipolar 500mA 18-DIP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 4 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 18-DIP (0.300"", 7.62mm) |
| Output Type | Bipolar |
| Mounting Type | Through Hole |
| Number of Outputs | 8 |
| Interface | Strobe, Serial |
| Switch Type | Latched Driver |
| Operating Temperature | -55°C ~ 85°C (TA) |
| Output Configuration | Low Side |
| Rds On (Typ) | - |
| Input Type | Non-Inverting |
| Voltage - Load | 15V (Max) |
| Voltage - Supply (Vcc/Vdd) | - |
| Current - Output (Max) | 500mA |
| Ratio - Input:Output | 1:8 |
| Supplier Device Package | 18-DIP |
| Fault Protection | - |
