MIC5801YN

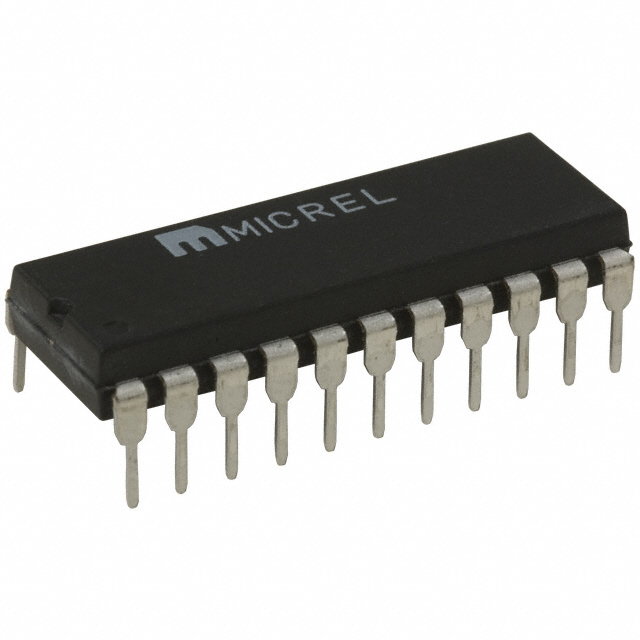

IC PWR DRIVER BIPOLAR 1:1 22DIPManufacturer: Microchip Technology
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The Microchip Technology MIC5801YN is an 8-channel, bipolar power driver IC. This latched driver features a 1:1 input-to-output ratio and is designed for through-hole mounting in a 22-DIP package. Each of the eight low-side outputs can source up to 500mA with a maximum load voltage of 50V. The device utilizes parallel and strobe interfaces for control. Operating within a temperature range of -40°C to 85°C, the MIC5801YN is suitable for applications in industrial automation and general-purpose power control.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 22-DIP (0.400"", 10.16mm) |
| Output Type | Bipolar |
| Mounting Type | Through Hole |
| Number of Outputs | 8 |
| Interface | Strobe, Parallel |
| Switch Type | Latched Driver |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Low Side |
| Rds On (Typ) | - |
| Input Type | - |
| Voltage - Load | 50V (Max) |
| Voltage - Supply (Vcc/Vdd) | - |
| Current - Output (Max) | 500mA |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 22-PDIP |
| Fault Protection | - |
