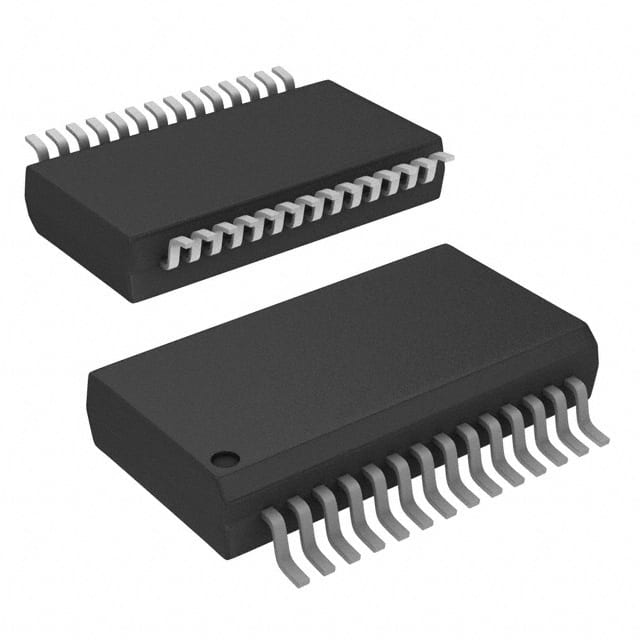

MIC2563A-1YSM-TR
IC PWR SWITCH N-CHAN 3:4 28SSOPManufacturer: Microchip Technology
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The Microchip Technology MIC2563A-1YSM-TR is a 3:4 N-Channel power switch/driver designed for surface mount applications in a 28-SSOP package. This component offers a fixed current limiting of 200mA with over-temperature fault protection. It features a low side output configuration and an Rds On of 1.8 Ohm (typical). The MIC2563A-1YSM-TR is suitable for load voltages of 3.3V, 5V, and 12V, with a 200mA maximum output current. This device is commonly utilized in PCMCIA switch applications and power distribution systems. The component is supplied on tape and reel (TR).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SSOP (0.209"", 5.30mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Interface | Logic |
| Switch Type | PCMCIA Switch |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Low Side |
| Rds On (Typ) | 1.8Ohm |
| Input Type | Non-Inverting |
| Voltage - Load | 3.3V, 5V, 12V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 200mA |
| Ratio - Input:Output | 3:4 |
| Supplier Device Package | 28-SSOP |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
