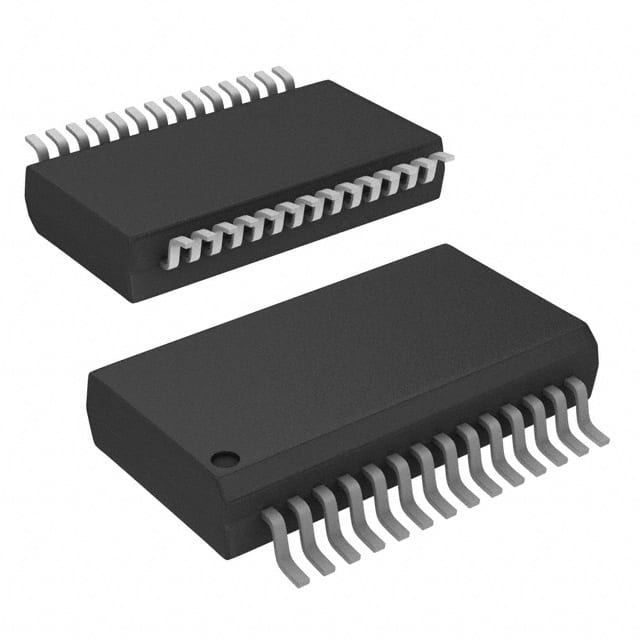

MIC2563A-0YSM
IC PWR SWITCH N-CHAN 3:4 28SSOPManufacturer: Microchip Technology
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The Microchip Technology MIC2563A-0YSM is a highly integrated power switch designed for robust power distribution. This N-channel device features a 3:4 input-to-output ratio and provides a maximum output current of 200mA per channel. It incorporates fixed current limiting and over-temperature fault protection for enhanced reliability. The MIC2563A-0YSM is housed in a 28-SSOP package, suitable for surface mounting. Its typical on-resistance is 1.8 Ohms. This component is commonly utilized in PCMCIA applications, offering versatile power management for load voltages of 3.3V, 5V, and 12V with a low-side output configuration. The device operates within an ambient temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 28-SSOP (0.209"", 5.30mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Interface | Logic |
| Switch Type | PCMCIA Switch |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Low Side |
| Rds On (Typ) | 1.8Ohm |
| Input Type | Non-Inverting |
| Voltage - Load | 3.3V, 5V, 12V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 200mA |
| Ratio - Input:Output | 3:4 |
| Supplier Device Package | 28-SSOP |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
