MIC2549A-2YTS
IC PWR SWITCH N-CHAN 1:1 14TSSOPManufacturer: Microchip Technology
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More

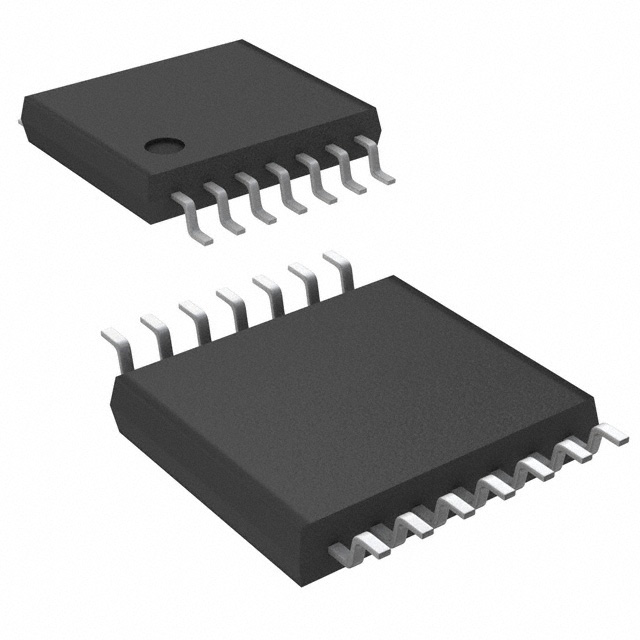

Microchip Technology's MIC2549A-2YTS is a high-side, N-Channel power switch designed for efficient power distribution. This electronic component features a 1:1 input-to-output ratio and supports a maximum output current of 3A. Key fault protection mechanisms include adjustable current limiting, over-temperature protection, and reverse current shutdown, ensuring robust operation. Integrated features such as slew rate control and a status flag provide enhanced system monitoring and stability. The MIC2549A-2YTS is housed in a 14-TSSOP package and is suitable for surface mounting. Its typical on-resistance is 35mOhm. This device is commonly utilized in industrial automation, consumer electronics, and communication infrastructure applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Slew Rate Controlled, Status Flag |
| Packaging | Tube |
| Package / Case | 14-TSSOP (0.173"", 4.40mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | USB Switch |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 35mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 2.7V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 3A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 14-TSSOP |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Reverse Current |
