MIC2546-1BTS-TR

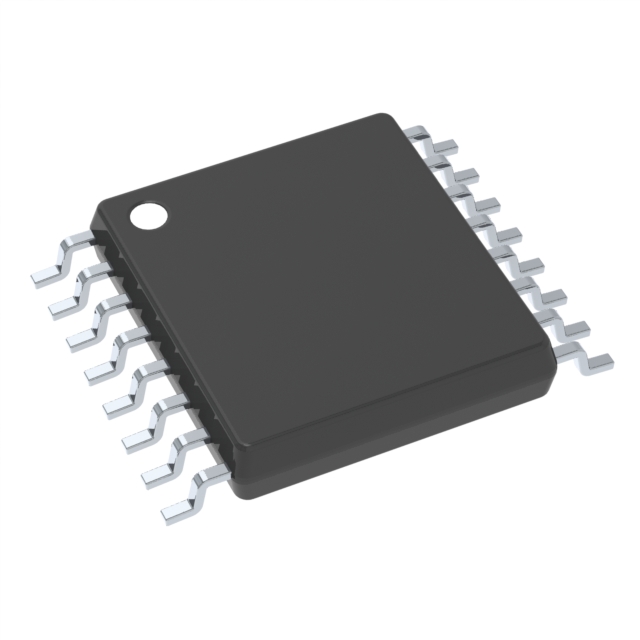

IC PWR SWITCH N-CHAN 1:1 16TSSOPManufacturer: Microchip Technology
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The Microchip Technology MIC2546-1BTS-TR is a dual-channel N-channel power distribution switch designed for robust load management. This device features adjustable current limiting, over-temperature protection, and reverse current shutdown, providing comprehensive fault protection. With a 1:1 input-to-output ratio and a typical Rds On of 80mOhm, it efficiently handles loads up to 1.5A per channel. The output configuration is high-side, and the switch type is specifically suited for USB applications. Each output channel includes a status flag for monitoring. The device operates over a temperature range of -40°C to 85°C and is supplied in a 16-TSSOP surface-mount package, presented on tape and reel. This component is commonly utilized in consumer electronics, computing systems, and industrial automation.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Interface | ON/OFF |
| Switch Type | USB Switch |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 80mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 2.7V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1.5A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 16-TSSOP |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Reverse Current |
