MIC2077-1BWM
QUAD USB PWR DISTRIBUTION SWITCHManufacturer: Microchip Technology
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Microchip Technology's MIC2077-1BWM is a quad USB power distribution switch designed for robust output current management. This N-Channel device features four independent outputs capable of delivering up to 500mA each. The MIC2077-1BWM integrates fixed current limiting and over-temperature protection, along with Undervoltage Lockout (UVLO) for enhanced system reliability. Its outputs are configured as high-side switches, and the device offers slew rate control for cleaner switching. A status flag provides critical output information. The 16-SOIC package facilitates surface mounting and is supplied in bulk. This component is commonly found in applications requiring controlled power delivery to multiple USB ports, including consumer electronics and industrial control systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Slew Rate Controlled, Status Flag |
| Packaging | Bulk |

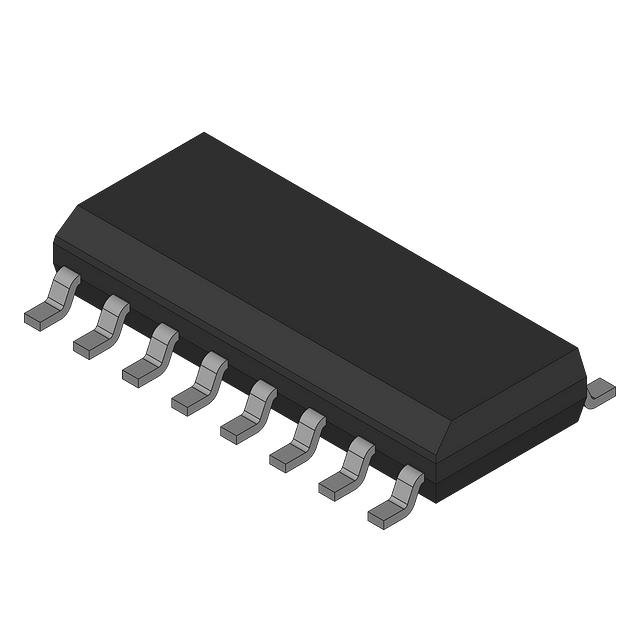

| Package / Case | 16-SOIC (0.295"", 7.50mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Interface | ON/OFF |
| Switch Type | USB Switch |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 100mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 2.7V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 500mA |
| Ratio - Input:Output | 2 x 1:2 |
| Supplier Device Package | 16-SOIC |
| Fault Protection | Current Limiting (Fixed), Over Temperature, UVLO |
