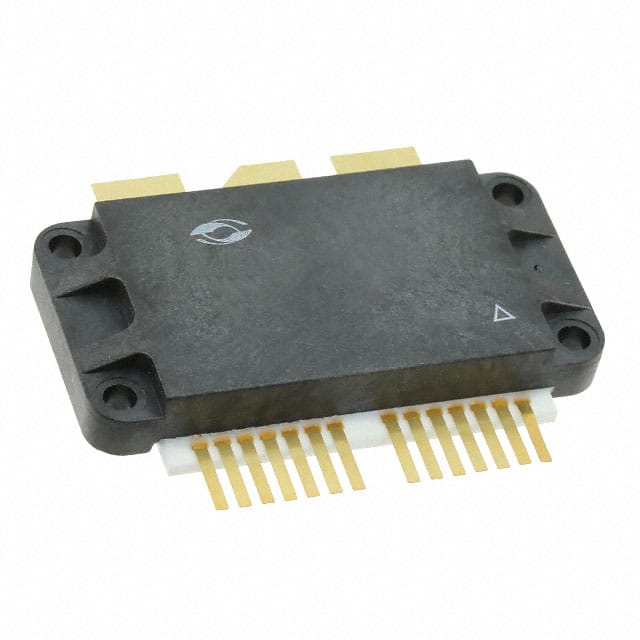

DRF1400
IC PWR SWITCH N-CHANNEL 1:1Manufacturer: Microchip Technology
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Microchip Technology DRF1400 is a robust 30A N-channel power switch designed for demanding applications. This general-purpose switch, featuring a 1:1 input-to-output ratio, is engineered for efficient power distribution and load management. It supports both inverting and non-inverting input types, offering flexibility in system integration via its ON/OFF interface. The DRF1400 is constructed as a module for chassis mounting, facilitating robust thermal performance. Its low-side output configuration and typical on-resistance of 240mOhm ensure minimal power loss. This component is suitable for applications requiring high current switching and power control, including industrial automation and power systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | Module |
| Output Type | N-Channel |
| Mounting Type | Chassis Mount |
| Number of Outputs | 2 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | - |
| Output Configuration | Low Side |
| Rds On (Typ) | 240mOhm |
| Input Type | Inverting, Non-Inverting |
| Voltage - Load | 8V ~ 15V |
| Voltage - Supply (Vcc/Vdd) | - |
| Current - Output (Max) | 30A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | - |
| Fault Protection | - |
