CD-700-EAE-KANN-32M0000000
CD-700-EAE-KANN-32M0000000Manufacturer: Microchip Technology
Categories: Pin Configurable/Selectable Oscillators
Quality Control: Learn More

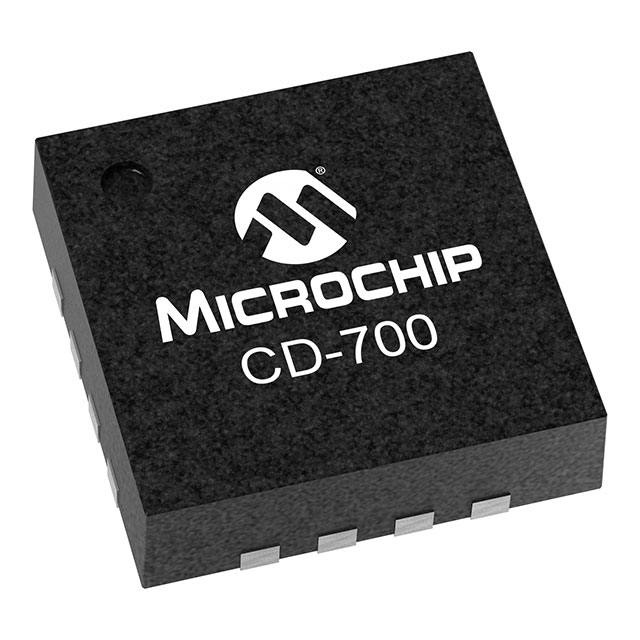

Microchip Technology's CD-700 series VCXO, part number CD-700-EAE-KANN-32M0000000, is a pin-configurable CMOS oscillator operating at 3.3V. This device, housed in a 16-CSMD, No Lead package, offers output frequencies of 32MHz and 16MHz, selectable via pin configuration. The VCXO features a frequency stability of ±75ppm and is supplied on tape and reel. Its compact dimensions of 0.295" L x 0.200" W (7.49mm x 5.08mm) with a height of 0.084" (2.13mm) make it suitable for space-constrained applications. The CD-700-EAE-KANN-32M0000000 draws a maximum supply current of 63mA and operates within an industrial temperature range of -40°C to 85°C. This component is utilized in various industries requiring precise clock generation and frequency control.
Additional Information
Series: CD-700RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-CSMD, No Lead |
| Size / Dimension | 0.295"" L x 0.200"" W (7.49mm x 5.08mm) |
| Output | CMOS |
| Function | - |
| Type | VCXO |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±75ppm |
| Voltage - Supply | 3.3V |
| Height | 0.084"" (2.13mm) |
| Ratings | - |
| Current - Supply (Max) | 63mA |
| Frequency - Output 1 | 32MHz |
| Frequency - Output 2 | 16MHz |
| Frequency - Output 3 | - |
| Frequency - Output 4 | - |
| Base Resonator | Crystal |
