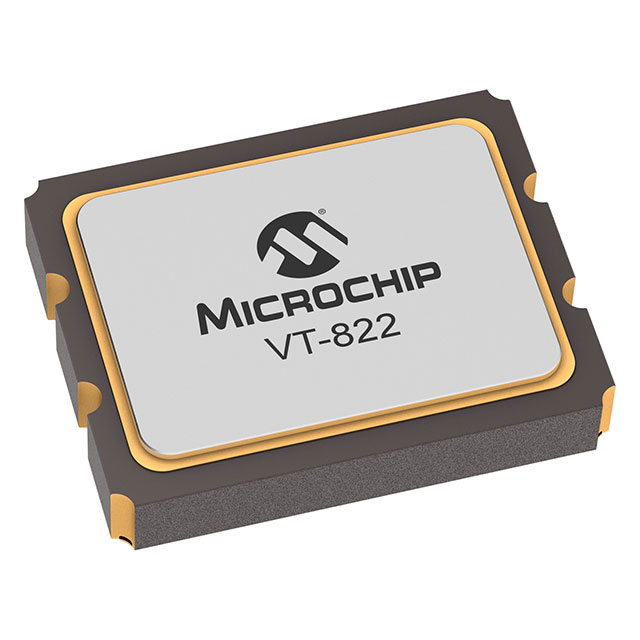

VT-822-EAE-2560-12M000
OSCILLATOR CMOS SMDManufacturer: Microchip Technology
Categories: Oscillators
Quality Control: Learn More
Microchip Technology VT-822 series TCXO CMOS oscillator, part number VT-822-EAE-2560-12M000. This surface-mount device operates at 12 MHz with a frequency stability of ±2.5ppm. Featuring a 3.3V supply voltage and a maximum current draw of 3mA, it includes an Enable/Disable function. The oscillator is housed in a 4-SMD, No Lead package with dimensions of 3.20mm x 2.50mm and a maximum seated height of 1.10mm. It is supplied on tape and reel. This component is suitable for applications requiring precise timing, including telecommunications, industrial control, and consumer electronics. The operating temperature range is -40°C to 85°C.
Additional Information
Series: VT-822RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.126"" L x 0.098"" W (3.20mm x 2.50mm) |
| Mounting Type | Surface Mount |
| Output | CMOS |
| Function | Enable/Disable |
| Type | TCXO |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±2.5ppm |
| Voltage - Supply | 3.3V |
| Ratings | - |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 3mA |
| Height - Seated (Max) | 0.043"" (1.10mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 12 MHz |
| Base Resonator | Crystal |
