PS-702-EDE-KABN-200M000000
PS-702-EDE-KABN-200M000000Manufacturer: Microchip Technology
Categories: Oscillators
Quality Control: Learn More

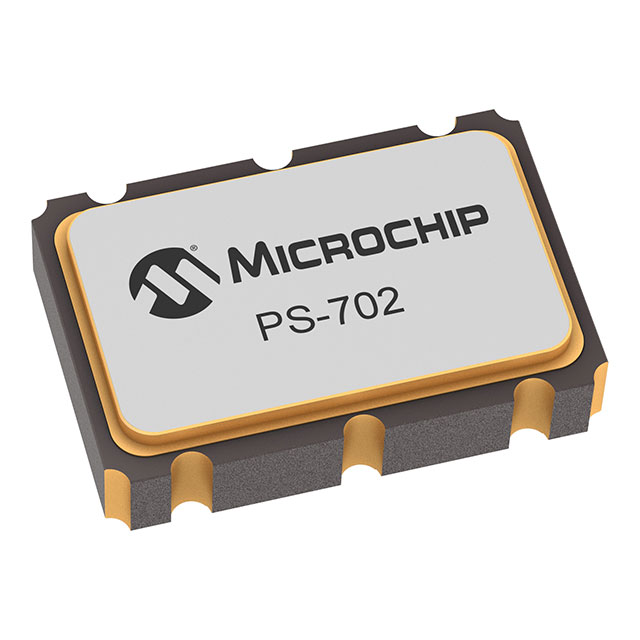

Microchip Technology PS-702-EDE-KABN-200M000000 is a 200 MHz SO (SAW) LVDS oscillator featuring a 3.3V enable/disable function. This component is housed in a 6-SMD, No Lead package with dimensions of 0.295" L x 0.200" W (7.49mm x 5.08mm) and a maximum seated height of 0.084" (2.13mm). The PS-702-EDE-KABN-200M000000 operates with a maximum supply current of 70mA and offers a frequency stability of ±50ppm. Designed for surface mounting, it operates within an extended temperature range of -40°C to 85°C. This oscillator is suitable for applications in telecommunications, industrial control, and computing. The part is supplied on a Tape & Reel (TR).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.295"" L x 0.200"" W (7.49mm x 5.08mm) |
| Mounting Type | Surface Mount |
| Output | LVDS |
| Function | Enable/Disable |
| Type | SO (SAW) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±50ppm |
| Voltage - Supply | 3.3V |
| Ratings | - |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 70mA |
| Height - Seated (Max) | 0.084"" (2.13mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 200 MHz |
| Base Resonator | Crystal |
