MO-9000AE-7K-EE-2M00000000
MO-9000AE-7K-EE-2M00000000Manufacturer: Microchip Technology
Categories: Oscillators
Quality Control: Learn More

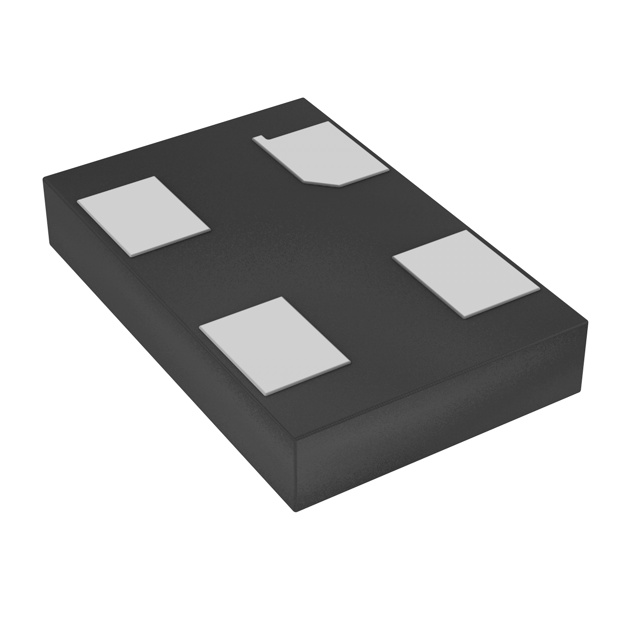

Microchip Technology MO-9000A series, part number MO-9000AE-7K-EE-2M00000000, is a 2 MHz XO CMOS oscillator. This MEMS-based component operates at a 3.3V supply voltage and features an Enable/Disable function. It is housed in a compact 4-SMD, No Lead package with dimensions of 2.50mm x 2.00mm and a maximum seated height of 0.80mm. The MO-9000AE-7K-EE-2M00000000 offers a frequency stability of ±50ppm over an operating temperature range of -40°C to 85°C. The maximum supply current is 4.5mA. This component is utilized in applications within the industrial and consumer electronics sectors. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: MO-9000ARoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.098"" L x 0.079"" W (2.50mm x 2.00mm) |
| Mounting Type | Surface Mount |
| Output | CMOS |
| Function | Enable/Disable |
| Type | XO (Standard) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±50ppm |
| Voltage - Supply | 3.3V |
| Ratings | - |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 4.5mA |
| Height - Seated (Max) | 0.031"" (0.80mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 2 MHz |
| Base Resonator | MEMS |
