DSC6331MI1BA-024.0000
MEMS OSC XO 24.0000MHZ LVCMOSManufacturer: Microchip Technology
Categories: Oscillators
Quality Control: Learn More

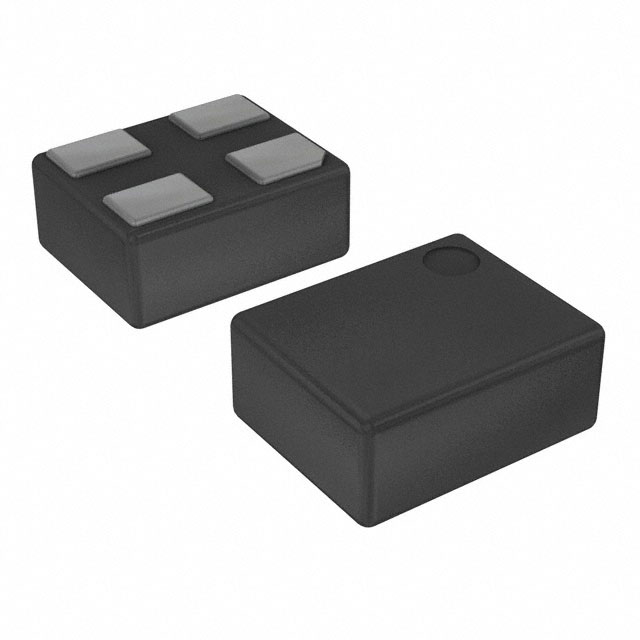

Microchip Technology DSC6331MI1BA-024-0000, a member of the DSC63XX series, is a MEMS-based XO oscillator operating at a precise 24 MHz frequency. This device features LVCMOS output and is housed in a compact 4-SMD, No Lead package, measuring 2.00mm x 1.60mm with a seated height of 0.89mm. It supports a wide supply voltage range from 1.8V to 3.3V and typically draws a maximum supply current of 3mA. The oscillator includes a ±0.50% center spread for its spread spectrum functionality. This component is suitable for applications requiring reliable clock generation across industrial and consumer electronics sectors.
Additional Information
Series: DSC63XXRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.079"" L x 0.063"" W (2.00mm x 1.60mm) |
| Mounting Type | Surface Mount |
| Output | LVCMOS |
| Function | - |
| Type | XO (Standard) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | - |
| Voltage - Supply | 1.8V ~ 3.3V |
| Ratings | - |
| Spread Spectrum Bandwidth | ±0.50%, Center Spread |
| Current - Supply (Max) | 3mA (Typ) |
| Height - Seated (Max) | 0.035"" (0.89mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 24 MHz |
| Base Resonator | MEMS |
