DSC6011CI1A-025.0000T
MEMS OSC XO 25.0000MHZ CMOS SMDManufacturer: Microchip Technology
Categories: Oscillators
Quality Control: Learn More

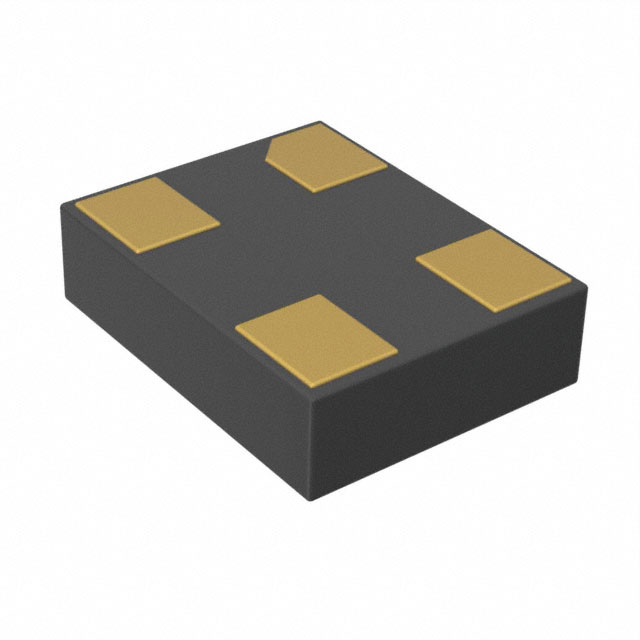

Microchip Technology DSC6011CI1A-025-0000T is a 25 MHz MEMS XO oscillator with CMOS output. This AEC-Q100 qualified component operates from a 1.71V to 3.63V supply voltage, drawing a typical 1.3mA. Designed for surface mounting in a 4-VDFN package, its dimensions are 3.20mm x 2.50mm with a maximum seated height of 0.90mm. The DSC60XX series oscillator offers a frequency stability of ±50ppm and includes a standby (power down) function. Its robust performance makes it suitable for automotive and industrial applications. The component is supplied in Tape & Reel packaging.
Additional Information
Series: DSC60XXRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-VDFN |
| Size / Dimension | 0.126"" L x 0.098"" W (3.20mm x 2.50mm) |
| Mounting Type | Surface Mount |
| Output | CMOS |
| Function | Standby (Power Down) |
| Type | XO (Standard) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±50ppm |
| Voltage - Supply | 1.71V ~ 3.63V |
| Ratings | AEC-Q100 |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 1.3mA (Typ) |
| Height - Seated (Max) | 0.035"" (0.90mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 25 MHz |
| Base Resonator | MEMS |
