MIC1344YFT-TR
IC SMART SW ORING 3A 2CH 12TQFNManufacturer: Microchip Technology
Categories: OR Controllers, Ideal Diodes
Quality Control: Learn More

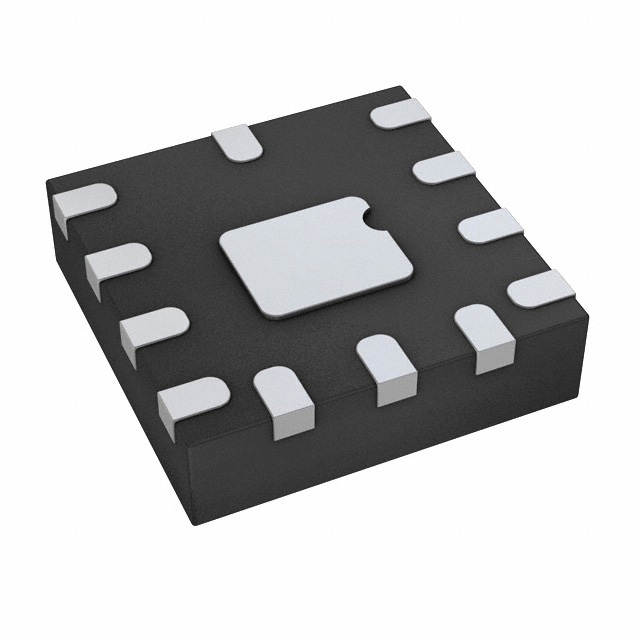

The Microchip Technology MIC1344YFT-TR is a dual-channel, 2:1 source selector switch designed for efficient power ORing applications. This device integrates internal switches, enabling seamless selection between two input power sources to a single output. With a maximum output current capability of 3A and a low quiescent current of 11 µA, it is optimized for power-sensitive designs.
The MIC1344YFT-TR operates over a voltage supply range of 2.8V to 5.5V and functions across an industrial temperature range of -40°C to 125°C. Packaged in a compact 12-FTQFN (2x2) with an exposed pad, it facilitates efficient thermal management. This component is well-suited for applications in automotive, industrial automation, and consumer electronics where reliable power redundancy and efficient power sourcing are critical. The "TR" designation indicates it is supplied on tape and reel for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-UFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Source Selector Switch |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 2.8V ~ 5.5V |
| Applications | - |
| Internal Switch(s) | Yes |
| FET Type | - |
| Current - Output (Max) | 3A |
| Ratio - Input:Output | 2:1 |
| Supplier Device Package | 12-FTQFN (2x2) |
| Current - Supply | 11 µA |
