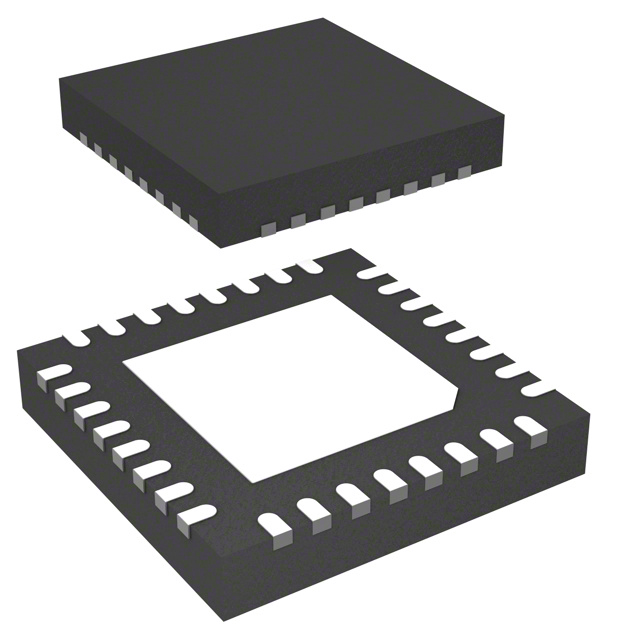

MCP8025-115H/MP
IC MOTOR DRIVER 6V-19V 40QFNManufacturer: Microchip Technology
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Motor Driver NMOS, PMOS PWM 40-QFN (5x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 4 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 40-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Controller - Commutation, Direction Management |
| Current - Output | - |
| Interface | PWM |
| Operating Temperature | -40°C ~ 150°C (TA) |
| Output Configuration | Pre-Driver - Half Bridge (3) |
| Voltage - Supply | 6V ~ 19V |
| Applications | General Purpose |
| Technology | NMOS, PMOS |
| Voltage - Load | - |
| Supplier Device Package | 40-QFN (5x5) |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
