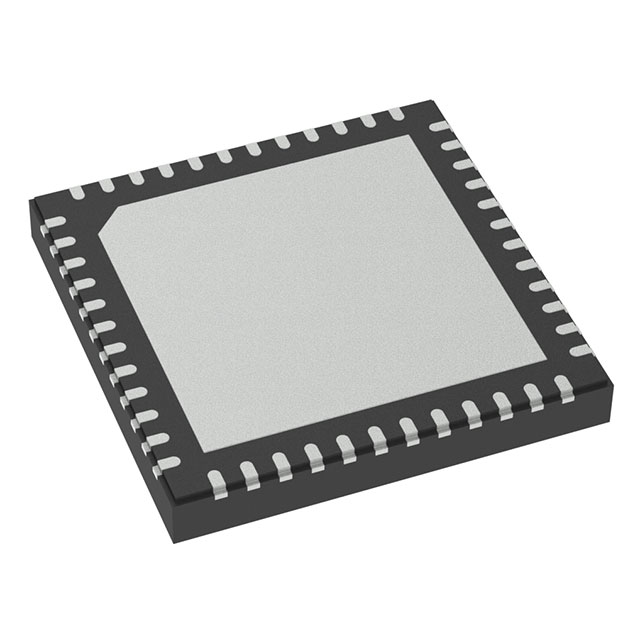

MCP8022T-5015H/NHXVAO
3-PHASE BRUSHLESS DC MOTOR GATEManufacturer: Microchip Technology
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Multiphase Motor Driver NMOS Analog, PWM 40-VQFN (5x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-VFQFN Exposed Pad |
| Mounting Type | Surface Mount, Wettable Flank |
| Function | Controller - Speed |
| Current - Output | 500mA |
| Interface | Analog, PWM |
| Operating Temperature | -40°C ~ 150°C (TA) |
| Output Configuration | Pre-Driver - Half Bridge (3) |
| Voltage - Supply | 4V ~ 40V |
| Applications | General Purpose |
| Technology | NMOS |
| Voltage - Load | 6.25V ~ 29V |
| Supplier Device Package | 40-VQFN (5x5) |
| Motor Type - Stepper | Multiphase |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
