ATA6824C-MFHW
IC MOTOR DRVR 6.5V-22.7V 32TQFPManufacturer: Microchip Technology
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Microchip Technology's ATA6824C-MFHW is a high-performance motor driver designed for demanding automotive applications. This serial interface device, housed in a 32-TQFP (7x7) package with an exposed pad, features a pre-driver configuration for two half-bridge outputs. It supports Brushed DC motor types and operates within a supply voltage range of 6.5V to 22.7V. The ATA6824C-MFHW is engineered with Power MOSFET technology, offering robust commutation and direction management capabilities. Its AEC-Q100 qualification ensures reliability in harsh automotive environments, making it suitable for use in applications such as automotive body electronics and electric power steering. The device is supplied on tape and reel for efficient surface mounting.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

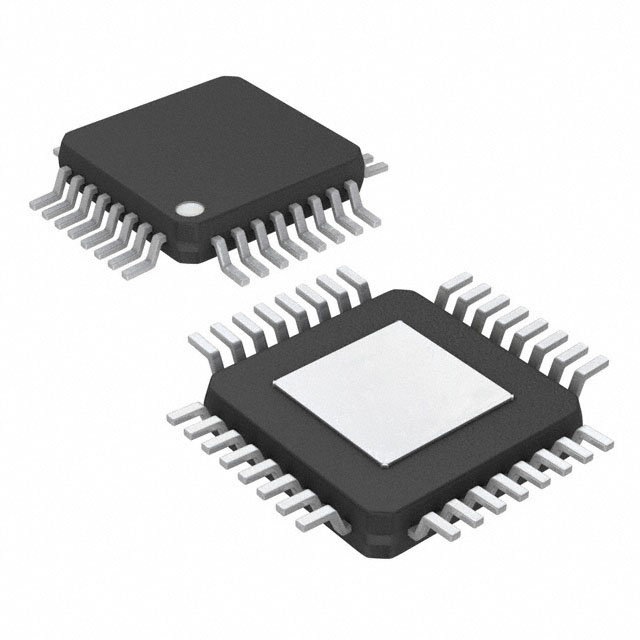

| Package / Case | 32-TQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Controller - Commutation, Direction Management |
| Current - Output | - |
| Interface | Serial |
| Operating Temperature | -40°C ~ 150°C (TA) |
| Output Configuration | Pre-Driver - Half Bridge (2) |
| Voltage - Supply | 6.5V ~ 22.7V |
| Applications | - |
| Technology | Power MOSFET |
| Voltage - Load | - |
| Supplier Device Package | 32-TPQFP (7x7) |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
