SAM9X75-I/4PB
ARM926 MPU,MIPI,LVDS,CAN-FD,BGA,Manufacturer: Microchip Technology
Categories: Microprocessors
Quality Control: Learn More

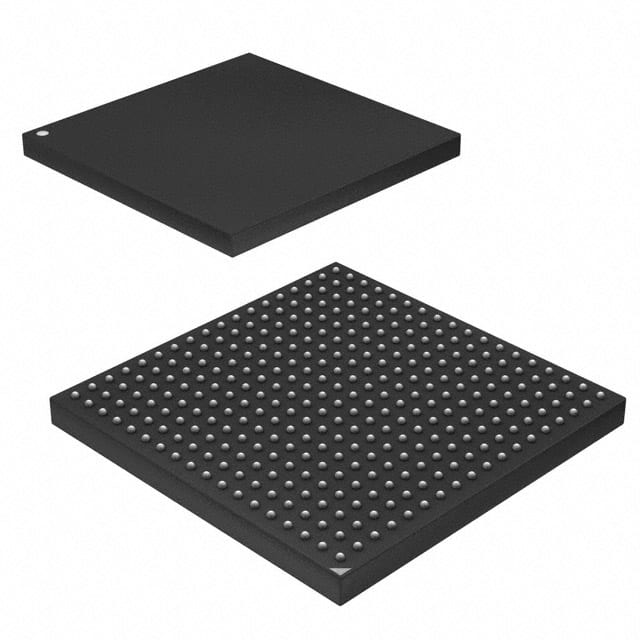

ARM926EJ-S Microprocessor IC SAM9X7 1 Core, 32-Bit 800MHz 240-TFBGA (11x11)
Additional Information
Series: SAM9X7RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 240-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 800MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor | ARM926EJ-S |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Supplier Device Package | 240-TFBGA (11x11) |
| Ethernet | 10/100/1000Mbps (1) |
| USB | USB (3) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DDR2, DDR3, DDR3L, SDRAM |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | LCD, LVDS, MIPI/DSI |
| Security Features | AES, Boot Security, Cryptography, DES, SHA, TRNG |
| SATA | - |
| Additional Interfaces | CANbus, EBI/EMI, I2C, MMC/SD/SDIO, QSPI, SPI, UART/USART, USB |
