PCX8240VTPU200E
IC MPU 200MHZ 352TBGAManufacturer: Microchip Technology
Categories: Microprocessors
Quality Control: Learn More
Microchip Technology's PCX8240VTPU200E is a 32-bit PowerPC 603e microprocessor featuring a single core operating at 200MHz. This component is housed in a 352-TBGA (35x35) package and supports DRAM and SDRAM memory controllers. The device offers I2C, I²O, and PCI interfaces for expanded connectivity. Designed for surface mount applications, it operates within a junction temperature range of -40°C to 110°C and has an I/O voltage of 3.3V. This microprocessor is suitable for applications in industrial automation and embedded systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 352-LBGA |
| Mounting Type | Surface Mount |
| Speed | 200MHz |
| Operating Temperature | -40°C ~ 110°C (TJ) |
| Core Processor | PowerPC 603e |
| Voltage - I/O | 3.3V |
| Supplier Device Package | 352-TBGA (35x35) |
| Ethernet | - |
| USB | - |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DRAM, SDRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | I2C, I²O, PCI |
Request a Quote
Clients Also Buy
ATSAMA5D26C-CU
IC MPU SAMA5D2 500MHZ 289LFBGA

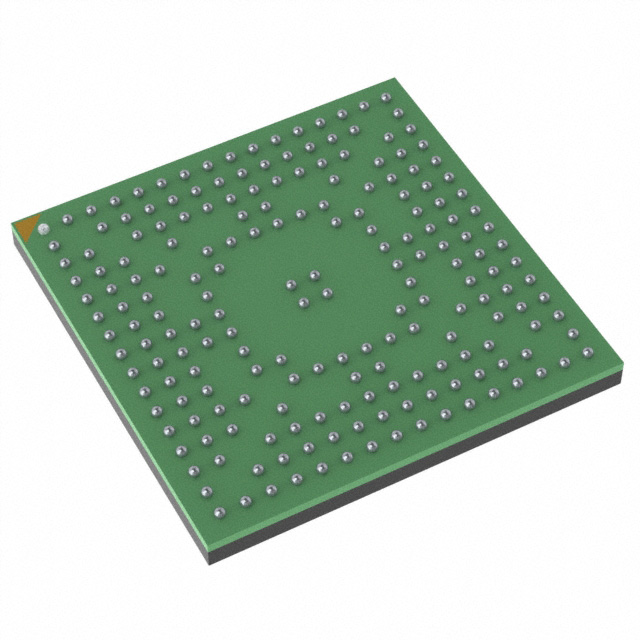

SAM9X60D1G-I/4FB
