ATSAMA5D42A-CUR
IC MPU SAMA5D4 600MHZ 361TFBGAManufacturer: Microchip Technology
Categories: Microprocessors
Quality Control: Learn More

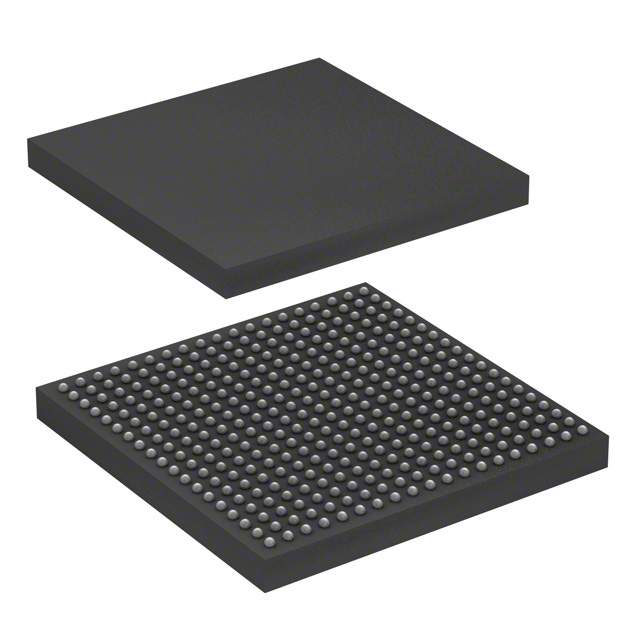

Microchip Technology's ATSAMA5D42A-CUR is a 32-bit, single-core ARM Cortex-A5 microprocessor operating at 600MHz. This SAMA5D4 series component features a 361-TFBGA (16x16) package and supports LPDDR, LPDDR2, and DDR2 RAM. Integrated peripherals include EBI, I2C, MMC/SD/SDIO, SPI, SSC, UART, and USART interfaces, alongside three USB 2.0 ports and a 10/100Mbps Ethernet controller. For multimedia processing, it includes NEON™ SIMD co-processors and graphics acceleration capabilities, with support for LCD and touchscreen interfaces. Security features include AES, SHA, TDES, and TRNG. This device is suitable for industrial and automotive applications. It operates within an ambient temperature range of -40°C to 85°C.
Additional Information
Series: SAMA5D4RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 361-TFBGA |
| Mounting Type | Surface Mount |
| Speed | 600MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor | ARM® Cortex®-A5 |
| Voltage - I/O | 1.2V, 1.8V, 3.3V |
| Supplier Device Package | 361-TFBGA (16x16) |
| Ethernet | 10/100Mbps (1) |
| USB | USB 2.0 (3) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR, LPDDR2, DDR2 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | LCD, Touchscreen |
| Security Features | AES, SHA, TDES, TRNG |
| SATA | - |
| Additional Interfaces | EBI, I2C, MMC/SD/SDIO, SPI, SSC, UART, USART |
