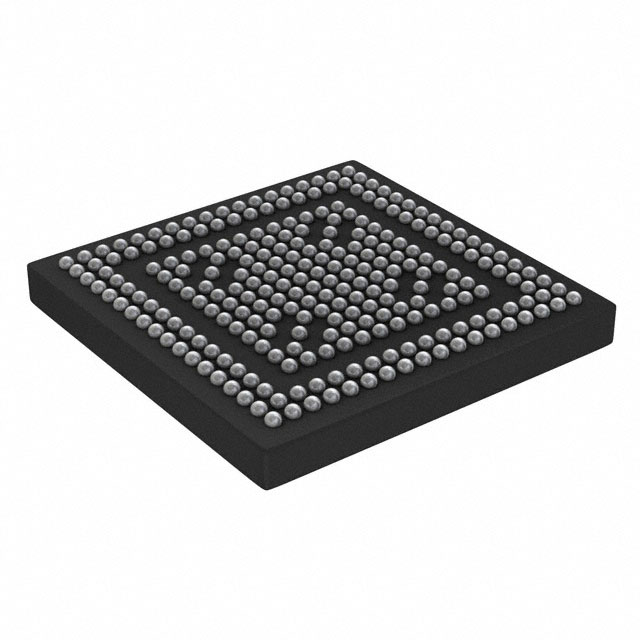

ATSAMA5D27C-CUR
IC MPU SAMA5D2 500MHZ 289LFBGAManufacturer: Microchip Technology
Categories: Microprocessors
Quality Control: Learn More
ARM® Cortex®-A5 Microprocessor IC SAMA5D2 1 Core, 32-Bit 500MHz 289-LFBGA (14x14)
Additional Information
Series: SAMA5D2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 7 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 289-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 500MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor | ARM® Cortex®-A5 |
| Voltage - I/O | 3.3V |
| Supplier Device Package | 289-LFBGA (14x14) |
| Ethernet | 10/100Mbps (1) |
| USB | USB 2.0 + HSIC |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ MPE |
| RAM Controllers | LPDDR1, LPDDR2, LPDDR3, DDR2, DDR3, DDR3L, QSPI |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | Keyboard, LCD, Touchscreen |
| Security Features | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC |
| SATA | - |
| Additional Interfaces | I2C, SMC, SPI, UART, USART, QSPI |
