AT91SAM9X35-CU
IC MPU SAM9X 400MHZ 217LFBGAManufacturer: Microchip Technology
Categories: Microprocessors
Quality Control: Learn More
ARM926EJ-S Microprocessor IC SAM9X 1 Core, 32-Bit 400MHz 217-LFBGA (15x15)
Additional Information
Series: SAM9XRoHS Status: ROHS3 CompliantManufacturer Lead Time: 4 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 217-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 400MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor | ARM926EJ-S |
| Voltage - I/O | 1.8V, 2.5V, 3.0V, 3.3V |
| Supplier Device Package | 217-LFBGA (15x15) |
| Ethernet | 10/100Mbps |
| USB | USB 2.0 (3) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | LPDDR, LPDDR2, DDR2, DDR, SDR, SRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | LCD, Touchscreen |
| Security Features | - |
| SATA | - |
| Additional Interfaces | CAN, EBI/EMI, I2C, MMC/SD/SDIO, SPI, SSC, UART/USART |
Request a Quote
Clients Also Buy

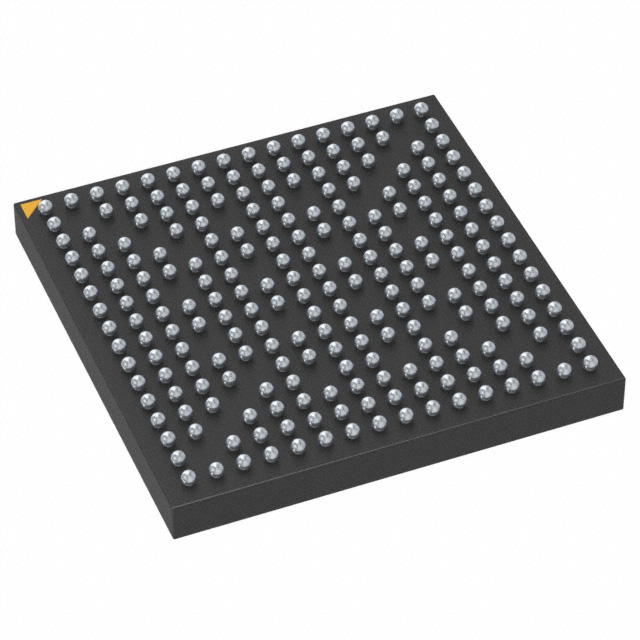

SAM9X60-V/DWBVAO
IC MPU SAM9X 600MHZ 228TFBGA
SAM9X60T-V/DWBVAO
IC MPU SAM9X 600MHZ 228TFBGA

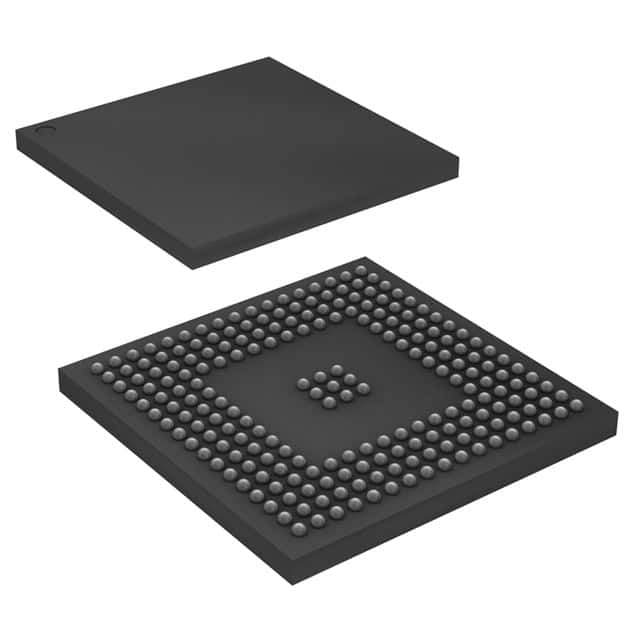

AT91SAM9X25-CU
