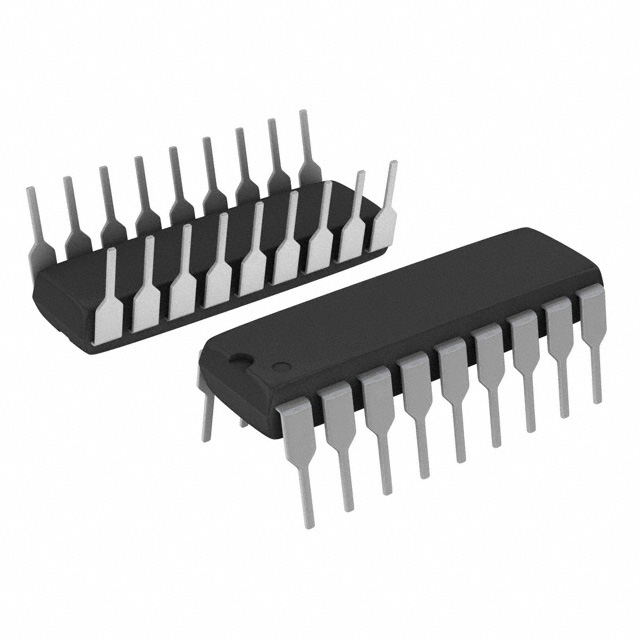

PIC16LC621-04E/P
IC MCU 8BIT 1.75KB OTP 18DIPManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology PIC® 16C microcontroller, part number PIC16LC621-04E-P, is an 8-bit device featuring a 4MHz clock speed. This OTP (One-Time Programmable) unit offers 1.75KB of program memory (1K x 14) and 80 bytes of RAM. It is housed in an 18-PDIP package, designed for through-hole mounting. The device includes essential peripherals such as Brown-out Detect/Reset, Power-On Reset (POR), and Watchdog Timer (WDT). With 13 I/O pins and a wide operating voltage range of 2.5V to 6V, the PIC16LC621-04E-P is suitable for applications in industrial control, consumer electronics, and automotive systems. The operating temperature range is -40°C to 125°C (TA), and it utilizes an external oscillator.
Additional Information
Series: PIC® 16CRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 18-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Speed | 4MHz |
| Program Memory Size | 1.75KB (1K x 14) |
| RAM Size | 80 x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | External |
| Program Memory Type | OTP |
| EEPROM Size | - |
| Core Processor | PIC |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.5V ~ 6V |
| Connectivity | - |
| Peripherals | Brown-out Detect/Reset, POR, WDT |
| Supplier Device Package | 18-PDIP |
| Number of I/O | 13 |
| Programmable | Verified |
