PIC16C926/CL

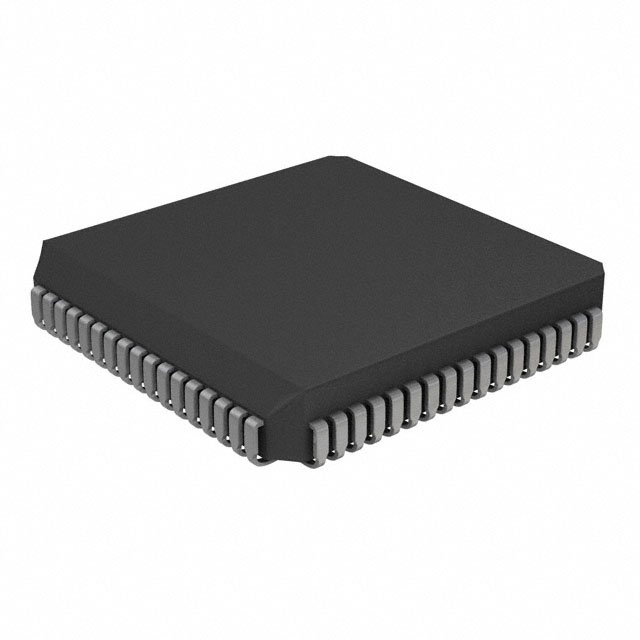

IC MCU 8BIT 14KB EPROM/UV 68CLCCManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology PIC® 16C microcontroller, part number PIC16C926-CL, is an 8-bit MCU with a 20MHz clock speed. This device features 14KB of EPROM UV program memory, organized as 8K x 14 bits, and 336 x 8 bytes of RAM. On-chip peripherals include Brown-out Detect/Reset, LCD controller, Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). Connectivity options include I2C and SPI interfaces. It also integrates 5x10-bit Analog-to-Digital (A/D) converters. The PIC16C926-CL is housed in a 68-CLCC Window (J-Lead) package, designed for surface mounting. Its operating temperature range is 0°C to 70°C (TA), with a supply voltage requirement of 4V to 5.5V. This component is commonly utilized in industrial automation, consumer electronics, and medical device applications.
Additional Information
Series: PIC® 16CRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 68-CLCC Window (J-Lead) |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 14KB (8K x 14) |
| RAM Size | 336 x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | External |
| Program Memory Type | EPROM, UV |
| EEPROM Size | - |
| Core Processor | PIC |
| Data Converters | A/D 5x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 5.5V |
| Connectivity | I2C, SPI |
| Peripherals | Brown-out Detect/Reset, LCD, POR, PWM, WDT |
| Supplier Device Package | 68-CLCC (24.13x24.13) |
| Number of I/O | 25 |
| Programmable | Not Verified |
