PIC16C74B/JW

Banner
productimage

PIC16C74B/JW

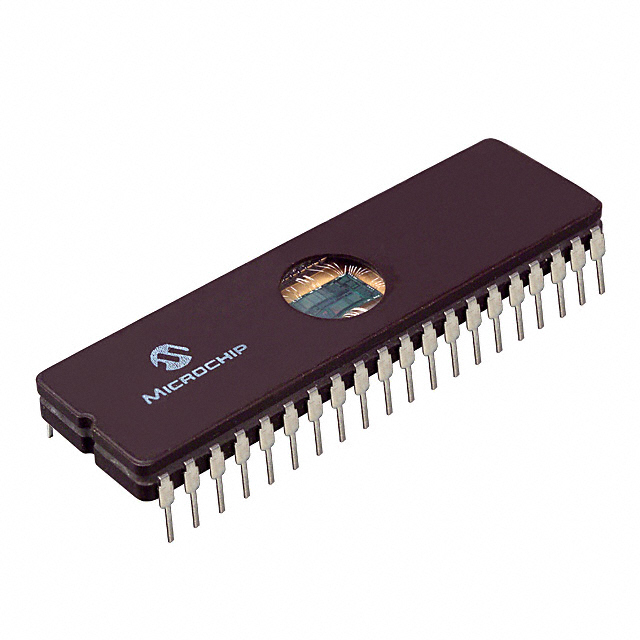

IC MCU 8BIT 7KB EPROM/UV 40CDIP

Manufacturer: Microchip Technology

Categories: Microcontrollers

Quality Control: Learn More

Microchip Technology PIC® 16C microcontroller, part number PIC16C74B-JW, is an 8-bit device featuring a 20MHz clock speed. This PIC microcontroller offers 7KB of UV EPROM program memory with a 4K x 14 configuration, and 192 x 8 bytes of RAM. Connectivity options include I2C, SPI, and UART/USART. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, and WDT. The device integrates an 8-bit, 8-channel Analog-to-Digital (A/D) converter. With 33 I/O pins and a 40-pin Cerdip (Window) package, this component is suitable for through-hole mounting and operates within a temperature range of 0°C to 70°C. The PIC16C74B-JW is commonly utilized in industrial automation and control systems, as well as consumer electronics.

Additional Information

Series: PIC® 16CRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tube
Technical Details:
PackagingTube
Package / Case40-CDIP (0.600"", 15.24mm) Window
Mounting TypeThrough Hole
Speed20MHz
Program Memory Size7KB (4K x 14)
RAM Size192 x 8
Operating Temperature0°C ~ 70°C (TA)
Oscillator TypeExternal
Program Memory TypeEPROM, UV
EEPROM Size-
Core ProcessorPIC
Data ConvertersA/D 8x8b
Core Size8-Bit
Voltage - Supply (Vcc/Vdd)4V ~ 5.5V
ConnectivityI2C, SPI, UART/USART
PeripheralsBrown-out Detect/Reset, POR, PWM, WDT
Supplier Device Package40-Cerdip
Number of I/O33
ProgrammableVerified
