PIC16C72/JW

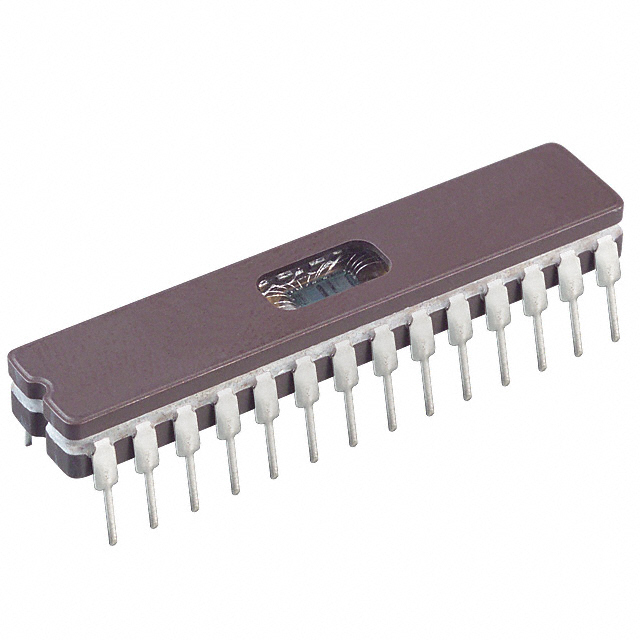

IC MCU 8B 3.5KB EPROM/UV 28CDIPManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
The Microchip Technology PIC® 16C microcontroller, part number PIC16C72-JW, is an 8-bit device operating at 20MHz. This component features 3.5KB of program memory in an EPROM, UV erasable format, organized as 2K x 14. It includes 128 bytes of RAM and 22 I/O pins. Connectivity options include I2C and SPI interfaces. For analog applications, it provides 5x8-bit Analog-to-Digital converters. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, and WDT. Designed for through-hole mounting, this device is housed in a 28-pin Ceramic DIP window package. The operating voltage range is 4V to 6V, with an operating temperature of 0°C to 70°C. This microcontroller is utilized in various industrial and consumer electronics applications.
Additional Information
Series: PIC® 16CRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-CDIP (0.300"", 7.62mm) Window |
| Mounting Type | Through Hole |
| Speed | 20MHz |
| Program Memory Size | 3.5KB (2K x 14) |
| RAM Size | 128 x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | External |
| Program Memory Type | EPROM, UV |
| EEPROM Size | - |
| Core Processor | PIC |
| Data Converters | A/D 5x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 6V |
| Connectivity | I2C, SPI |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 28-CerDip |
| Number of I/O | 22 |
| Programmable | Verified |
