PIC16C712/JW
IC MCU 8B 1.75KB EPROM/UV 18CDIPManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More

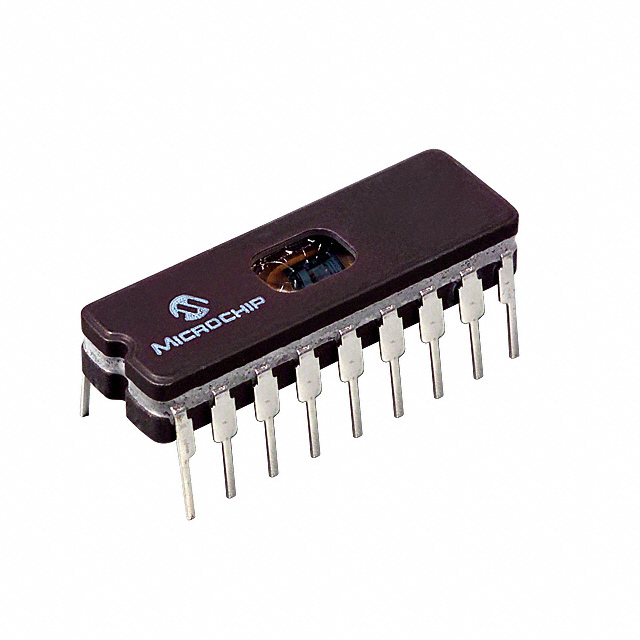

Microchip Technology PIC® 16C microcontroller, part number PIC16C712-JW, is an 8-bit device operating at 20MHz. This PIC® 16C series component features 1.75KB of UV EPROM program memory (1K x 14) and 128 bytes of RAM. It includes an A/D converter with 4x8-bit channels and provides 13 I/O pins. Integrated peripherals such as Brown-out Detect/Reset, POR, PWM, and WDT enhance its functionality. The PIC16C712-JW is housed in an 18-CERDIP window package, suitable for through-hole mounting, and operates within a voltage range of 4V to 5.5V. Its operating temperature range is 0°C to 70°C. This microcontroller is commonly utilized in industrial and consumer electronics applications.
Additional Information
Series: PIC® 16CRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 18-CDIP (0.300"", 7.62mm) Window |
| Mounting Type | Through Hole |
| Speed | 20MHz |
| Program Memory Size | 1.75KB (1K x 14) |
| RAM Size | 128 x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | External |
| Program Memory Type | EPROM, UV |
| EEPROM Size | - |
| Core Processor | PIC |
| Data Converters | A/D 4x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 5.5V |
| Connectivity | - |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 18-CERDIP |
| Number of I/O | 13 |
| Programmable | Verified |
