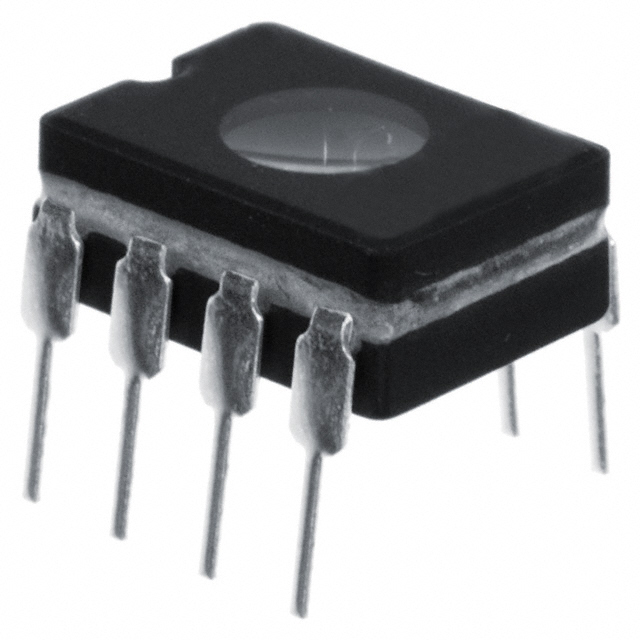

PIC12CE674/JW
IC MCU 8BIT 3.5KB EPROM/UV 8CDIPManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology's PIC® 12C series PIC12CE674-JW is an 8-bit microcontroller featuring a UV-erasable EPROM program memory of 3.5KB (2K x 14). This device operates at a maximum speed of 10MHz and includes 128 x 8 bytes of RAM and 16 x 8 bytes of EEPROM. On-chip peripherals include a Power-On Reset (POR) and Watchdog Timer (WDT). The PIC12CE674-JW integrates a 4-channel, 8-bit Analog-to-Digital (A/D) converter and offers 5 I/O pins. Designed for through-hole mounting, it comes in an 8-CDIP (0.300", 7.62mm) window package. The operating voltage range is 3V to 5.5V, with an operating temperature range of 0°C to 70°C. This component is suitable for applications in industrial automation and consumer electronics.
Additional Information
Series: PIC® 12CRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-CDIP (0.300"", 7.62mm) Window |
| Mounting Type | Through Hole |
| Speed | 10MHz |
| Program Memory Size | 3.5KB (2K x 14) |
| RAM Size | 128 x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | EPROM, UV |
| EEPROM Size | 16 x 8 |
| Core Processor | PIC |
| Data Converters | A/D 4x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | - |
| Peripherals | POR, WDT |
| Supplier Device Package | 8-CDIP |
| Number of I/O | 5 |
| Programmable | Verified |
