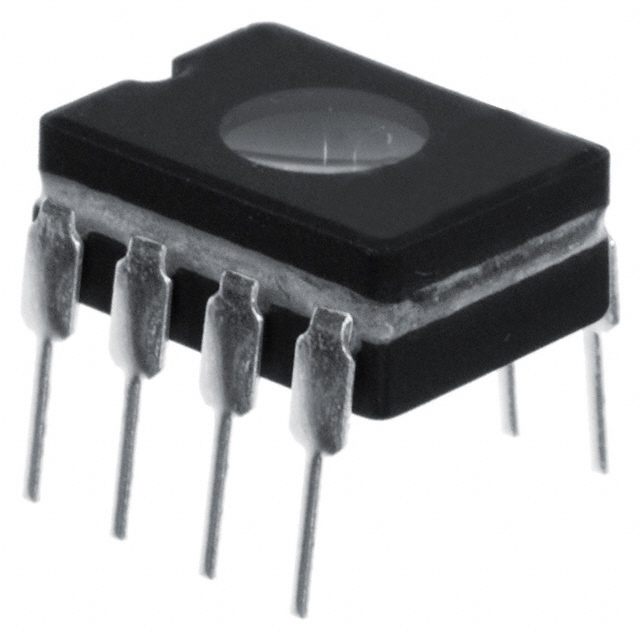

PIC12CE673/JW
IC MCU 8B 1.75KB EPROM/UV 8CDIPManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology PIC® 12C microcontroller, part number PIC12CE673-JW, features an 8-bit PIC core operating at 10MHz. This device offers 1.75KB of UV erasable EPROM for program storage and 128 x 8 bytes of RAM. On-chip peripherals include a Power-On Reset (POR) and Watchdog Timer (WDT). It also incorporates 4x8-bit Analog-to-Digital (A/D) converters and 16 x 8 bytes of EEPROM. With 5 I/O pins, this microcontroller is suitable for applications in industrial automation and consumer electronics. The PIC12CE673-JW is packaged in an 8-CDIP windowed package for through-hole mounting and operates within a temperature range of 0°C to 70°C. It requires a supply voltage of 3V to 5.5V.
Additional Information
Series: PIC® 12CRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-CDIP (0.300"", 7.62mm) Window |
| Mounting Type | Through Hole |
| Speed | 10MHz |
| Program Memory Size | 1.75KB (1K x 14) |
| RAM Size | 128 x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | EPROM, UV |
| EEPROM Size | 16 x 8 |
| Core Processor | PIC |
| Data Converters | A/D 4x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | - |
| Peripherals | POR, WDT |
| Supplier Device Package | 8-CDIP |
| Number of I/O | 5 |
| Programmable | Verified |
