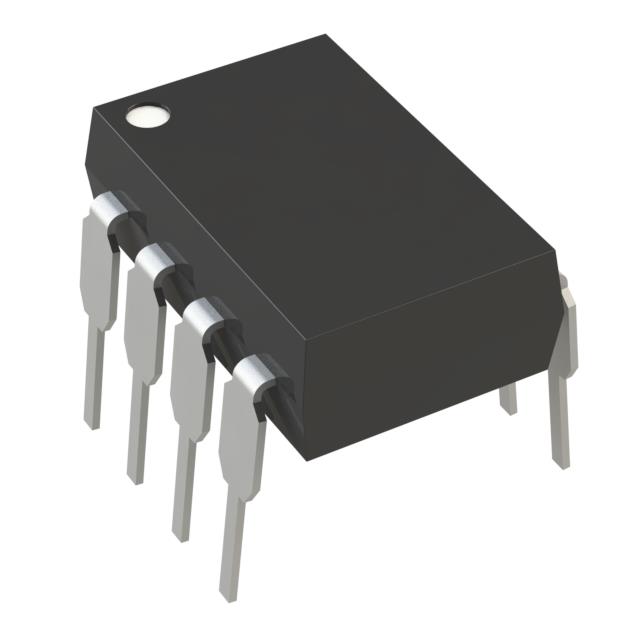

PIC12CE519/JW
IC MCU 8BIT 1.5KB EPROM/UV 8CDIPManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology PIC® 12C microcontroller, part number PIC12CE519-JW, features an 8-bit PIC core operating at up to 4MHz. This device offers 1.5KB of EPROM program memory with UV erasability and a 1K x 12 program memory configuration. On-chip data storage includes 41 x 8 RAM and 16 x 8 EEPROM. Integrated peripherals include Power-On Reset (POR) and Watchdog Timer (WDT). The PIC12CE519-JW is packaged in an 8-CDIP (0.300", 7.62mm) windowed package suitable for through-hole mounting. It supports a supply voltage range of 3V to 5.5V and operates within a temperature range of 0°C to 70°C. This component is utilized in various industrial applications requiring compact, robust control solutions.
Additional Information
Series: PIC® 12CRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-CDIP (0.300"", 7.62mm) Window |
| Mounting Type | Through Hole |
| Speed | 4MHz |
| Program Memory Size | 1.5KB (1K x 12) |
| RAM Size | 41 x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | EPROM, UV |
| EEPROM Size | 16 x 8 |
| Core Processor | PIC |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | - |
| Peripherals | POR, WDT |
| Supplier Device Package | 8-CDIP |
| Number of I/O | 5 |
| Programmable | Verified |
