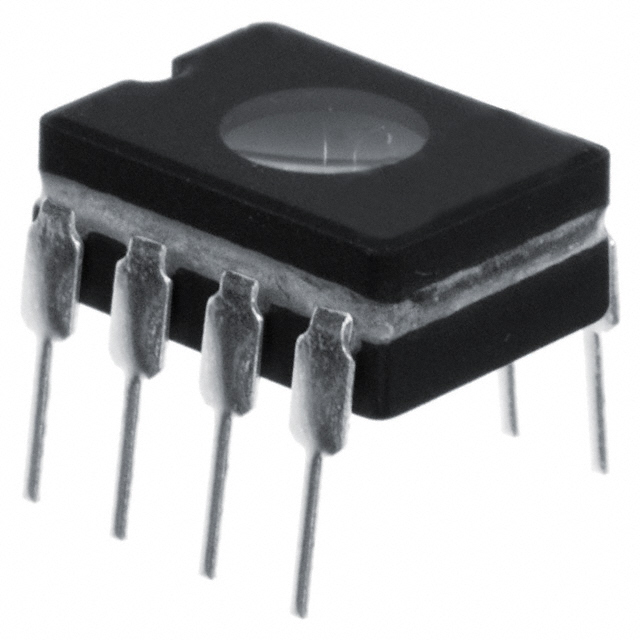

PIC12CE518/JW
IC MCU 8BIT 768B EPROM/UV 8CDIPManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology PIC® 12C microcontroller, part number PIC12CE518-JW, featuring an 8-bit PIC core. This device offers 768 bytes of EPROM program memory, organized as 512 x 12 bits, and 16 bytes of EEPROM data storage. It includes 25 bytes of RAM. The PIC12CE518-JW operates at a maximum speed of 4MHz and supports a voltage range of 3V to 5.5V. Peripherals include Power-On Reset (POR) and Watchdog Timer (WDT). This component is housed in an 8-CDIP windowed package, suitable for through-hole mounting. Its internal oscillator simplifies system design. Applications for this microcontroller are found in industrial and consumer electronics.
Additional Information
Series: PIC® 12CRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-CDIP (0.300"", 7.62mm) Window |
| Mounting Type | Through Hole |
| Speed | 4MHz |
| Program Memory Size | 768B (512 x 12) |
| RAM Size | 25 x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | EPROM, UV |
| EEPROM Size | 16 x 8 |
| Core Processor | PIC |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | - |
| Peripherals | POR, WDT |
| Supplier Device Package | 8-CDIP |
| Number of I/O | 5 |
| Programmable | Verified |
