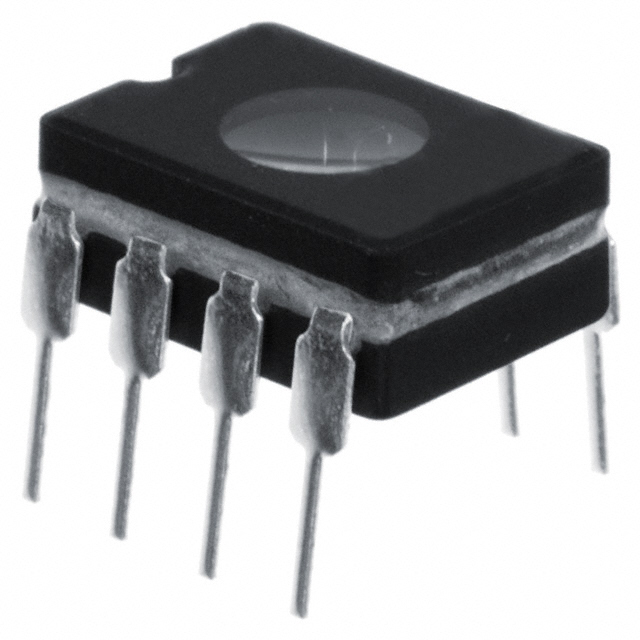

PIC12C672/JW
IC MCU 8BIT 3.5KB EPROM/UV 8CDIPManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
The Microchip Technology PIC® 12C microcontroller, part number PIC12C672-JW, is an 8-bit device featuring a 10MHz clock speed. This PIC microcontroller integrates 3.5KB of EPROM program memory (2K x 14) and 128 bytes of RAM. It includes an A/D converter with 4 x 8-bit channels and offers 5 I/O pins. Peripherals include Power-On Reset (POR) and Watchdog Timer (WDT). The PIC12C672-JW utilizes an internal oscillator and operates within a voltage range of 3V to 5.5V. This component is housed in an 8-CDIP (0.300", 7.62mm) window package suitable for through-hole mounting and is specified for operation within a 0°C to 70°C ambient temperature range. Applications for this device can be found in industrial and consumer electronics.
Additional Information
Series: PIC® 12CRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-CDIP (0.300"", 7.62mm) Window |
| Mounting Type | Through Hole |
| Speed | 10MHz |
| Program Memory Size | 3.5KB (2K x 14) |
| RAM Size | 128 x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | EPROM, UV |
| EEPROM Size | - |
| Core Processor | PIC |
| Data Converters | A/D 4x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | - |
| Peripherals | POR, WDT |
| Supplier Device Package | 8-CDIP |
| Number of I/O | 5 |
| Programmable | Verified |
