PIC12C509A/JW

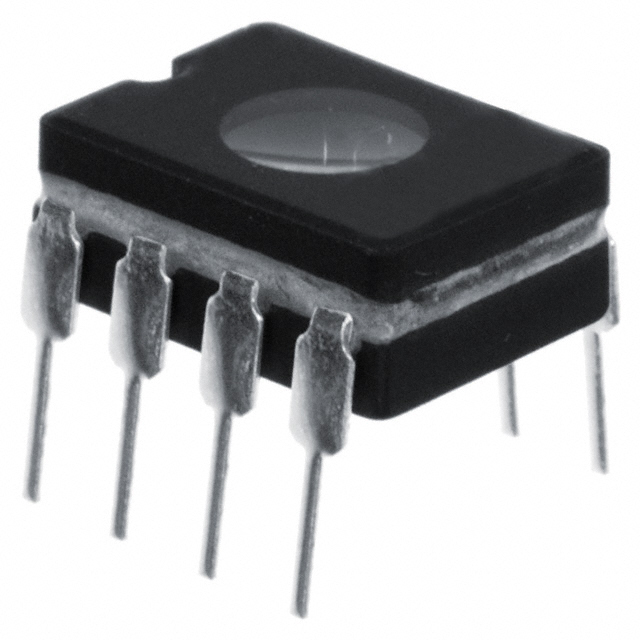

IC MCU 8BIT 1.5KB EPROM/UV 8CDIPManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
The Microchip Technology PIC® 12C microcontroller, part number PIC12C509A-JW, is an 8-bit device featuring a 1.5KB EPROM program memory and 41 bytes of RAM. This UV erasable microcontroller operates at speeds up to 4MHz and is housed in an 8-CDIP windowed package suitable for through-hole mounting. Key peripherals include Power-On Reset (POR) and Watchdog Timer (WDT). The PIC12C509A-JW finds application in various industrial control and consumer electronics segments requiring robust, cost-effective embedded processing. It offers 5 programmable I/O pins and operates within a voltage range of 3V to 5.5V, with an operating temperature range of 0°C to 70°C.
Additional Information
Series: PIC® 12CRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-CDIP (0.300"", 7.62mm) Window |
| Mounting Type | Through Hole |
| Speed | 4MHz |
| Program Memory Size | 1.5KB (1K x 12) |
| RAM Size | 41 x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | EPROM, UV |
| EEPROM Size | - |
| Core Processor | PIC |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | - |
| Peripherals | POR, WDT |
| Supplier Device Package | 8-CDIP |
| Number of I/O | 5 |
| Programmable | Verified |
