PIC12C509/JW

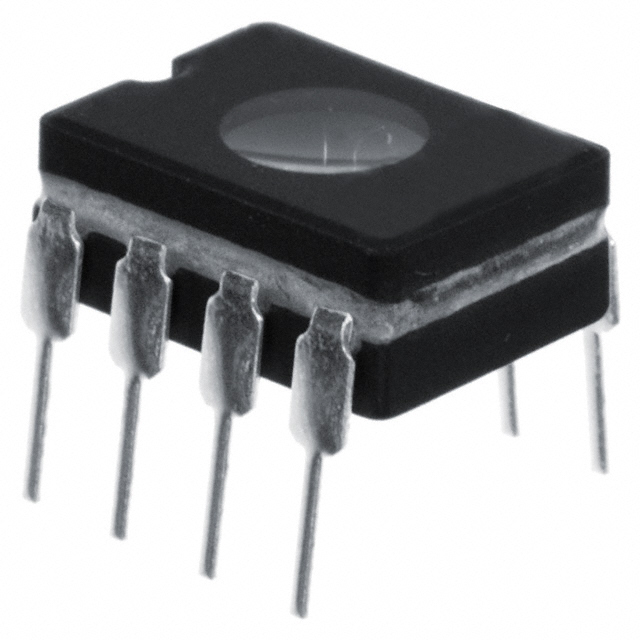

IC MCU 8BIT 1.5KB EPROM/UV 8CDIPManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
The Microchip Technology PIC® 12C microcontroller, part number PIC12C509-JW, is an 8-bit device featuring 1.5KB of UV erasable EPROM program memory and 41 bytes of RAM. This microcontroller operates at a maximum speed of 4MHz, powered by a 2.5V to 5.5V supply. Key peripherals include Power-on Reset (POR) and Watchdog Timer (WDT). The PIC12C509-JW is housed in an 8-pin Ceramic Dual Inline Package (CDIP) with a window, suitable for through-hole mounting. Its 8-bit PIC core and 5 I/O pins make it suitable for applications in consumer electronics and industrial control systems. The operating temperature range is 0°C to 70°C.
Additional Information
Series: PIC® 12CRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-CDIP (0.300"", 7.62mm) Window |
| Mounting Type | Through Hole |
| Speed | 4MHz |
| Program Memory Size | 1.5KB (1K x 12) |
| RAM Size | 41 x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | EPROM, UV |
| EEPROM Size | - |
| Core Processor | PIC |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.5V ~ 5.5V |
| Connectivity | - |
| Peripherals | POR, WDT |
| Supplier Device Package | 8-CDIP |
| Number of I/O | 5 |
| Programmable | Verified |
