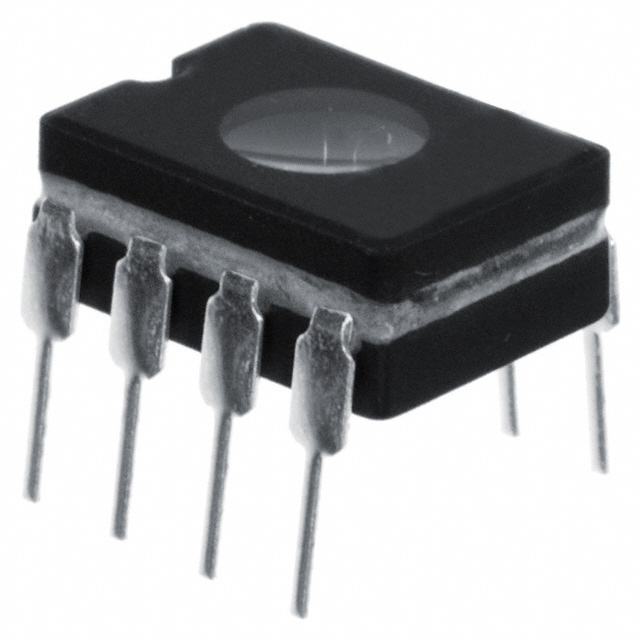

PIC12C508A/JW
IC MCU 8BIT 768B EPROM/UV 8CDIPManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology PIC® 12C PIC12C508A-JW microcontroller. This 8-bit MCU features a 768-byte EPROM program memory with UV erasability and a 25 x 8-byte RAM. The internal oscillator operates at 4MHz, supporting a voltage range of 3V to 5.5V. It includes Power-On Reset (POR) and Watchdog Timer (WDT) peripherals. With 5 I/O pins, this device is housed in an 8-CDIP window package suitable for through-hole mounting. The operating temperature range is 0°C to 70°C. This component finds application in various industrial and commercial sectors requiring compact, cost-effective control solutions.
Additional Information
Series: PIC® 12CRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-CDIP (0.300"", 7.62mm) Window |
| Mounting Type | Through Hole |
| Speed | 4MHz |
| Program Memory Size | 768B (512 x 12) |
| RAM Size | 25 x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | EPROM, UV |
| EEPROM Size | - |
| Core Processor | PIC |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | - |
| Peripherals | POR, WDT |
| Supplier Device Package | 8-CDIP |
| Number of I/O | 5 |
| Programmable | Verified |
