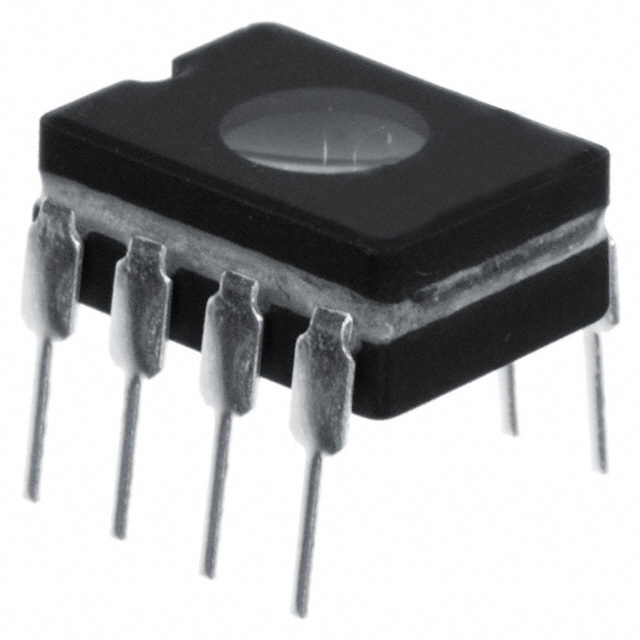

PIC12C508/JW
IC MCU 8BIT 768B EPROM/UV 8CDIPManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology's PIC® 12C 8-bit microcontroller, part number PIC12C508-JW, features 768 bytes of EPROM UV reprogrammable program memory with a 512 x 12 configuration. This device includes 25 x 8 bytes of RAM and operates at a maximum speed of 4MHz. Key peripherals include Power-On Reset (POR) and Watchdog Timer (WDT). The PIC12C508-JW utilizes an internal oscillator and offers 5 I/O pins. It is packaged in an 8-CDIP windowed case for through-hole mounting. This component is suitable for applications in industrial control and consumer electronics. The operating temperature range is 0°C to 70°C (TA), and the supply voltage is 2.5V to 5.5V.
Additional Information
Series: PIC® 12CRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-CDIP (0.300"", 7.62mm) Window |
| Mounting Type | Through Hole |
| Speed | 4MHz |
| Program Memory Size | 768B (512 x 12) |
| RAM Size | 25 x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | EPROM, UV |
| EEPROM Size | - |
| Core Processor | PIC |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.5V ~ 5.5V |
| Connectivity | - |
| Peripherals | POR, WDT |
| Supplier Device Package | 8-CDIP |
| Number of I/O | 5 |
| Programmable | Verified |
