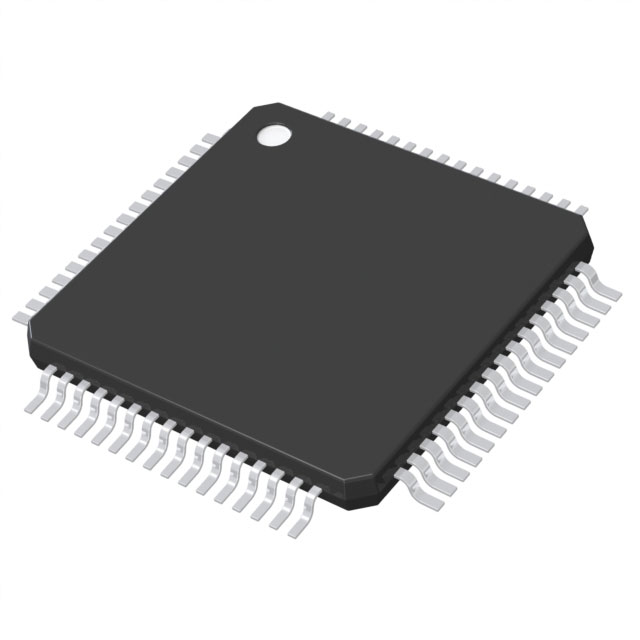

DSPIC33FJ64GS606-E/PT
IC MCU 16BIT 64KB FLASH 64TQFPManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
The Microchip Technology dsPIC™ 33F series microcontroller, part number DSPIC33FJ64GS606-E-PT, is a 16-bit digital signal controller featuring a dsPIC core with a speed of 40 MIPs. This AEC-Q100 qualified component offers 64KB of FLASH program memory and 9KB of RAM. Connectivity options include CANbus, I2C, IrDA, LINbus, SPI, and UART/USART. The device is housed in a 64-TQFP (10x10) surface mount package. On-chip peripherals include Brown-out Detect/Reset, DMA, QEI, POR, PWM, and WDT. It also incorporates 16x10b A/D and 1x10b D/A converters. The operating temperature range is -40°C to 125°C (TA), with a supply voltage of 3V to 3.6V. This device is suitable for automotive applications.
Additional Information
Series: dsPIC™ 33FRoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-TQFP |
| Mounting Type | Surface Mount |
| Speed | 40 MIPs |
| Program Memory Size | 64KB (64K x 8) |
| RAM Size | 9K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | dsPIC |
| Data Converters | A/D 16x10b; D/A 1x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | CANbus, I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, QEI, POR, PWM, WDT |
| Supplier Device Package | 64-TQFP (10x10) |
| Grade | Automotive |
| Number of I/O | 58 |
| Programmable | Not Verified |
| Qualification | AEC-Q100 |
