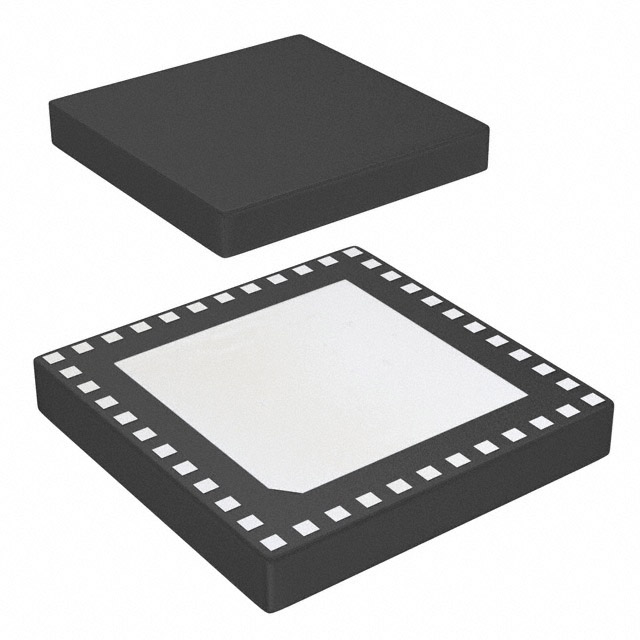

DSPIC33EP128MC504-E/TL
IC MCU 16BIT 128KB FLASH 44VTLAManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology dsPIC™ 33EP dsPIC33EP128MC504-E-TL is a 16-bit digital signal controller featuring a dsPIC core operating at 60 MIPs. This device offers 128KB of program memory in FLASH, with 43K x 24 organization, and 8KB of RAM. Connectivity options include CANbus, I2C, IrDA, LINbus, QEI, SPI, and UART/USART. The microcontroller includes integrated 9x10b/12b Analog-to-Digital converters and peripherals such as Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, and WDT. It is supplied in a 44-VTLA (6x6) Surface Mount package, specifically a 44-VFTLA Exposed Pad, in a tube. Designed for operation across an automotive temperature range of -40°C to 125°C (TA), this component is suitable for applications in the automotive industry. The operating supply voltage is between 3V and 3.6V.
Additional Information
Series: dsPIC™ 33EPRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 44-VFTLA Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 60 MIPs |
| Program Memory Size | 128KB (43K x 24) |
| RAM Size | 8K x 16 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | dsPIC |
| Data Converters | A/D 9x10b/12b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | CANbus, I2C, IrDA, LINbus, QEI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT |
| Supplier Device Package | 44-VTLA (6x6) |
| Grade | Automotive |
| Number of I/O | 35 |
| Programmable | Not Verified |
| Qualification | AEC-Q100 |
