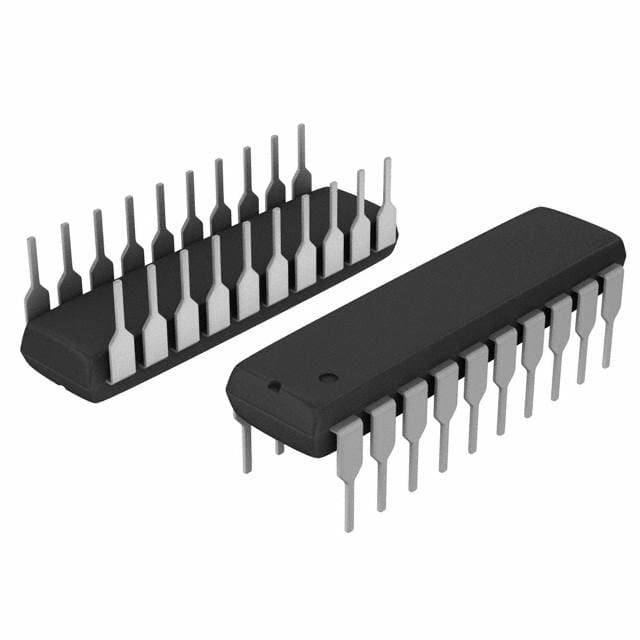

ATTINY861V-10PU
IC MCU 8BIT 8KB FLASH 20DIPManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology AVR® ATtiny ATTINY861V-10PU is an 8-bit microcontroller featuring an AVR core. This device offers 8KB of FLASH program memory, configurable as 4K x 16, and 512 bytes each of EEPROM and SRAM. It operates at a speed of 10MHz and includes an internal oscillator. Connectivity is supported via the Universal Serial Interface (USI). The ATTINY861V-10PU is equipped with an 11-channel, 10-bit Analog-to-Digital converter. Peripherals include Brown-out Detect/Reset, Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). With 16 general-purpose I/O pins, this component is suitable for applications in industrial automation and consumer electronics. It is supplied in a 20-PDIP package for through-hole mounting and operates within a voltage range of 1.8V to 5.5V, with an operating temperature range of -40°C to 85°C.
Additional Information
Series: AVR® ATtinyRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Speed | 10MHz |
| Program Memory Size | 8KB (4K x 16) |
| RAM Size | 512 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| Core Processor | AVR |
| Data Converters | A/D 11x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Connectivity | USI |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 20-PDIP |
| Number of I/O | 16 |
| Programmable | Verified |
