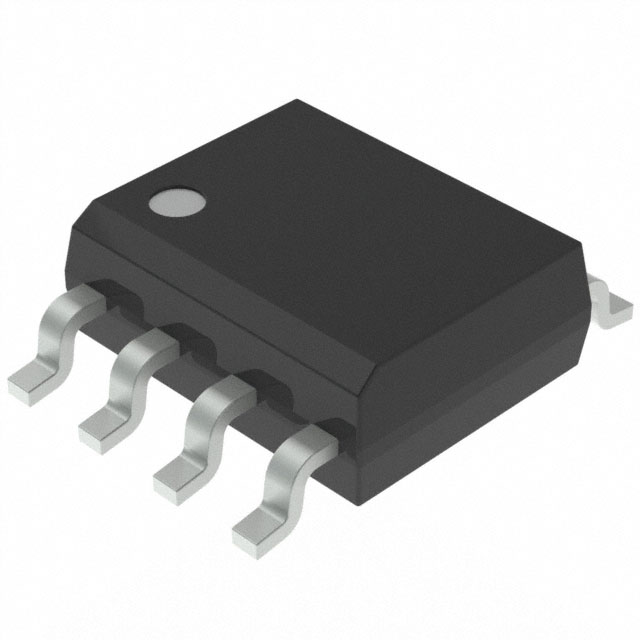

ATTINY25V-10SSH
IC MCU 8BIT 2KB FLASH 8SOICManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology AVR® ATtiny, Functional Safety (FuSa) microcontroller, part number ATTINY25V-10SSH. This 8-bit AVR core microcontroller operates at 10MHz, featuring 2KB of FLASH program memory (1K x 16) and 128 bytes of EEPROM. It includes 128 bytes of RAM and offers 6 programmable I/O pins. Key peripherals include a USI for serial communication, a brown-out detector, power-on reset (POR), PWM, and a watchdog timer (WDT). The device is equipped with four 10-bit Analog-to-Digital converters. Designed for surface mount applications, the ATTINY25V-10SSH is housed in an 8-SOIC package and operates within a voltage range of 1.8V to 5.5V over an ambient temperature range of -40°C to 85°C. This component is commonly found in industrial automation, automotive, and consumer electronics applications.
Additional Information
Series: AVR® ATtiny, Functional Safety (FuSa)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Speed | 10MHz |
| Program Memory Size | 2KB (1K x 16) |
| RAM Size | 128 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 128 x 8 |
| Core Processor | AVR |
| Data Converters | A/D 4x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Connectivity | USI |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 8-SOIC |
| Number of I/O | 6 |
| Programmable | Verified |
